TPR431 - Precision Programmable Reference

The TPR431 by 3PEAK is a Precision Programmable Reference. Below is the official datasheet preview.

📥 Download Datasheet

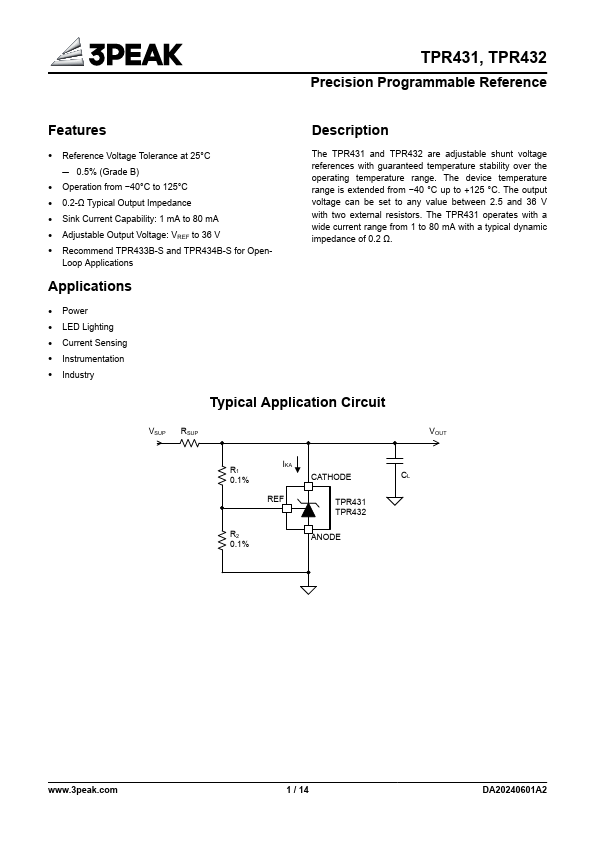

Official preview page of the TPR431 Precision Programmable Reference datasheet (3PEAK).

Datasheet Details

Part number TPR431
Manufacturer 3PEAK
File Size 1.06 MB
Description Precision Programmable Reference
Datasheet download datasheet TPR431-3PEAK.pdf

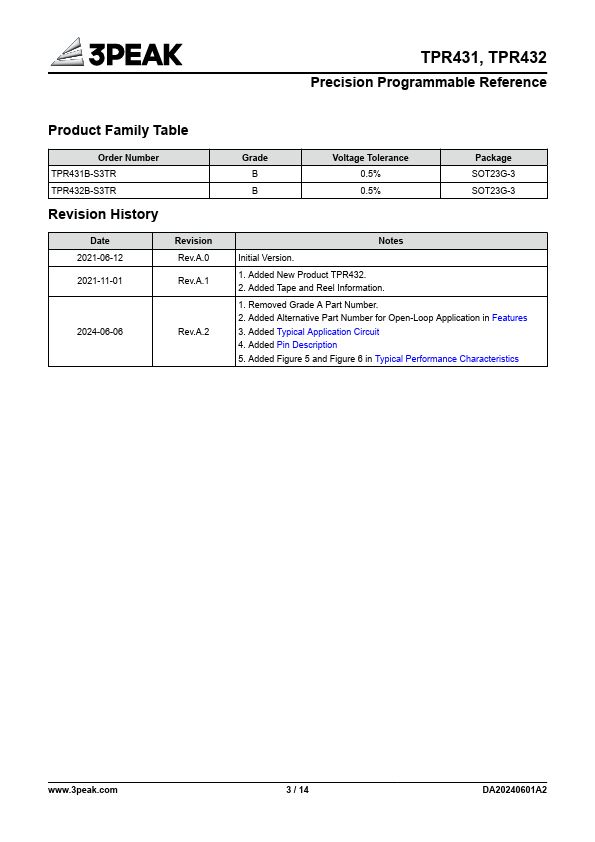

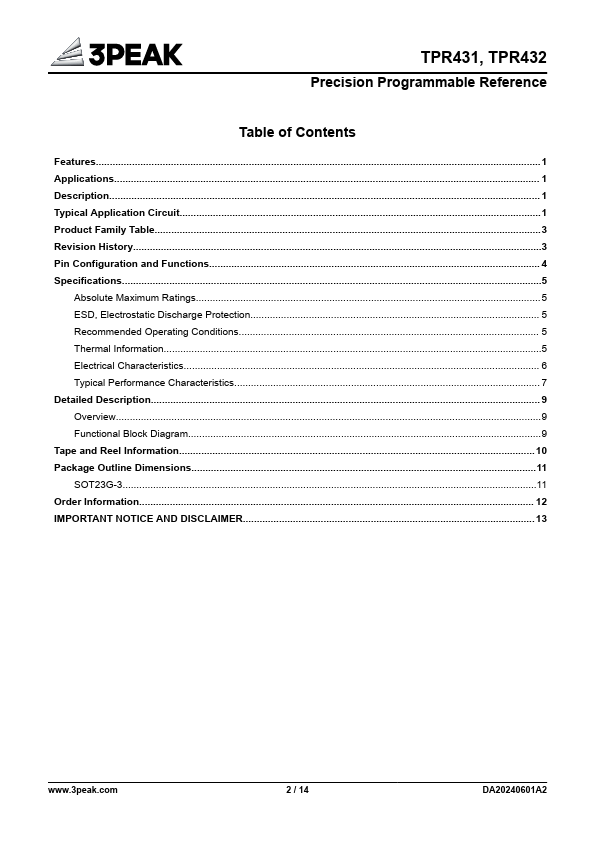

Additional preview pages of the TPR431 datasheet.

TPR431 Product details

Description

Reference Voltage Tolerance at 25°C 0.5% (Grade B) Operation from 40°C to 125°C 0.2-Ω Typical Output Impedance Sink Current Capability: 1 mA to 80 mA Adjustable Output Voltage: VREF to 36 V Recommend TPR433B-S and TPR434B-S for Open- Loop Applications Applications The TPR431 and TPR432 are adjustable shunt voltage references with guaranteed temperature stability over the operating temperature range.The device tempe
