TPP361080 - 1-A Synchronous Step-Down Voltage Regulator

The TPP361080 by 3PEAK is a 1-A Synchronous Step-Down Voltage Regulator. Below is the official datasheet preview.

📥 Download Datasheet

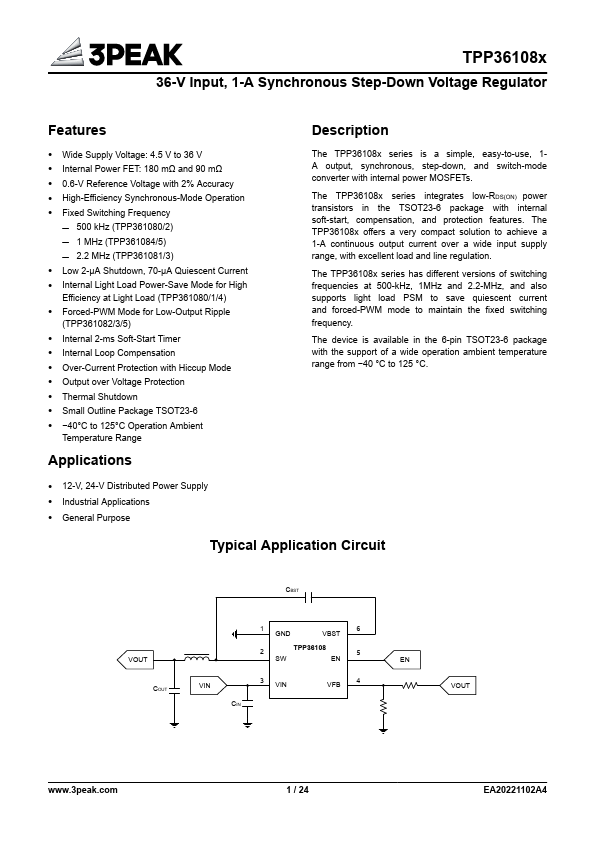

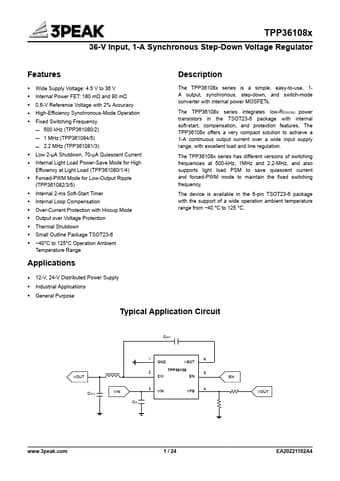

Official preview page of the TPP361080 1-A Synchronous Step-Down Voltage Regulator datasheet (3PEAK).

Datasheet Details

Part number TPP361080
Manufacturer 3PEAK
File Size 1.70 MB
Description 1-A Synchronous Step-Down Voltage Regulator
Datasheet download datasheet TPP361080-3PEAK.pdf

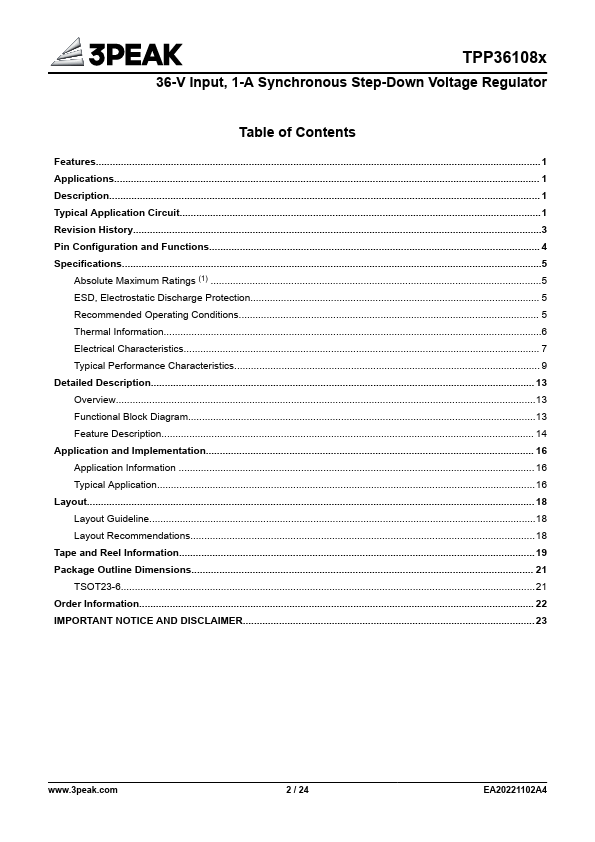

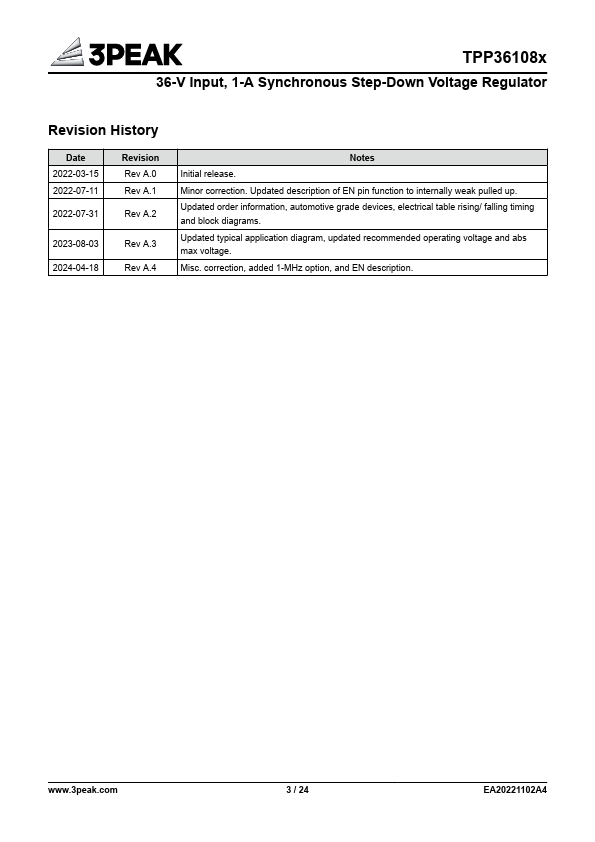

Additional preview pages of the TPP361080 datasheet.

TPP361080 Product details

Description

Wide Supply Voltage: 4.5 V to 36 V Internal Power FET: 180 mΩ and 90 mΩ 0.6-V Reference Voltage with 2% Accuracy High-Efficiency Synchronous-Mode Operation Fixed Switching Frequency 500 kHz (TPP361080/2) 1 MHz (TPP361084/5) 2.2 MHz (TPP361081/3) Low 2-μA Shutdown, 70-μA Quiescent Current Internal Light Load Power-Save Mode for High Efficiency at Light Load (TPP361080/1/4) Forced-PWM Mod
