TPL740 Low-Dropout Linear Regulator

TPL740 Description

.
The TPL740 series products are high performance and low dropout linear regulators.

TPL740 Features

* Input Voltage Range: 2.4 V to 5.5 V
* Output Voltage Options:
* Fixed Voltage: 1.2 V, 1.5 V, 1.8 V, 2.5 V, 2.7 V, 2.8 V, 2.9 V, 3 V, 3.3 V
* Adjustable Voltage: 0.8 V to 5 V
* High Output Accuracy:
* ±1% Typical Under Room Temperature
* ±2% Through Opera

TPL740 Applications

* Handheld Devices with Battery Power Supply
* POS
* Video Surveillance

📥 Download Datasheet

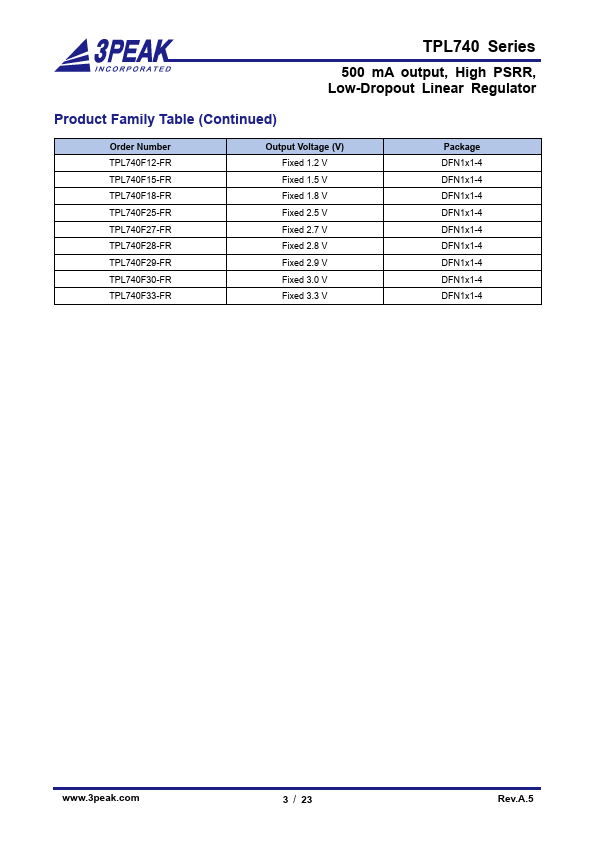

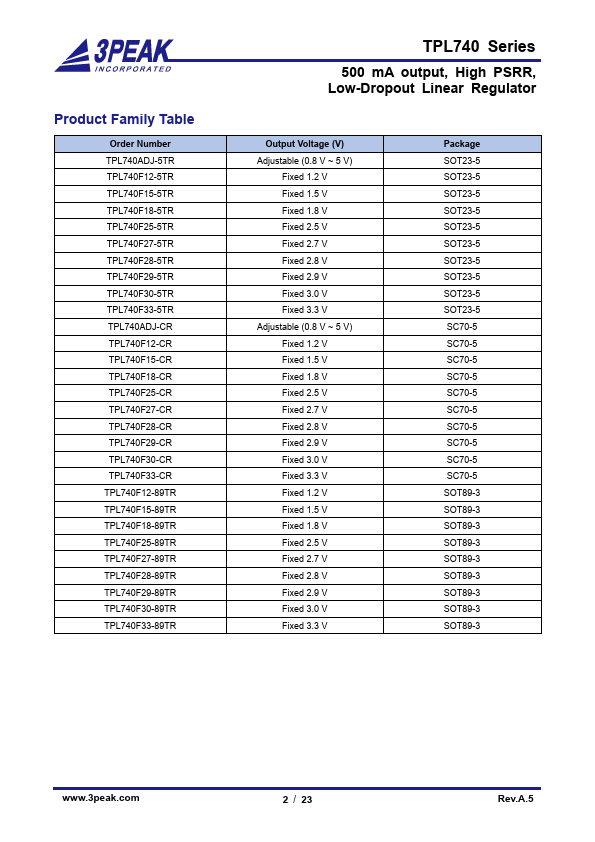

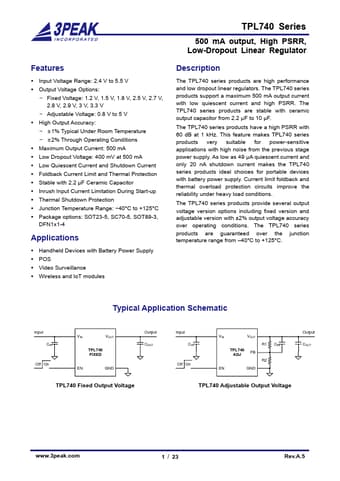

Preview of TPL740 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPL740
Manufacturer
3PEAK
File Size
1.29 MB
Datasheet
TPL740-3PEAK.pdf
Description
Low-Dropout Linear Regulator
