TPE15017 - PoE PD Solution

The TPE15017 by 3PEAK is a PoE PD Solution. Below is the official datasheet preview.

📥 Download Datasheet

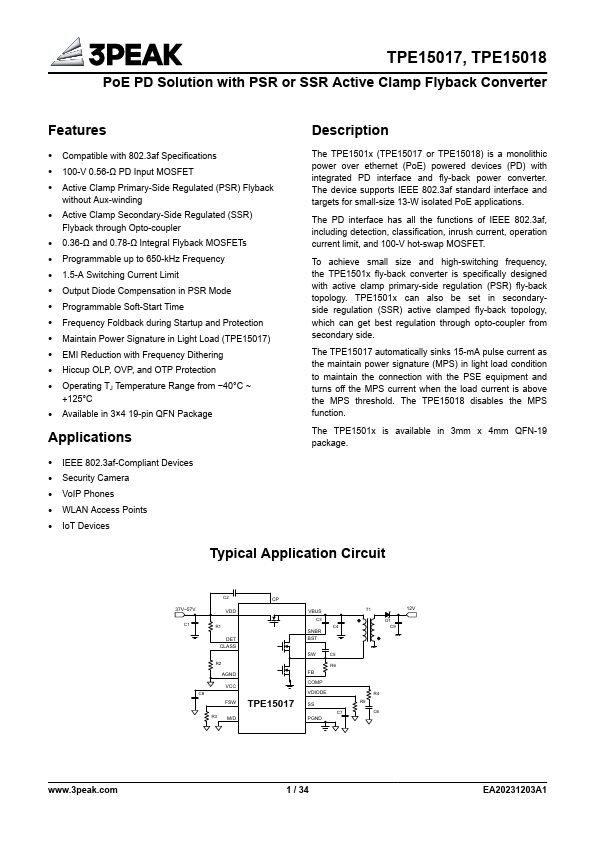

Official preview page of the TPE15017 PoE PD Solution datasheet (3PEAK).

Datasheet Details

Part number TPE15017
Manufacturer 3PEAK
File Size 4.42 MB
Description PoE PD Solution
Datasheet download datasheet TPE15017-3PEAK.pdf

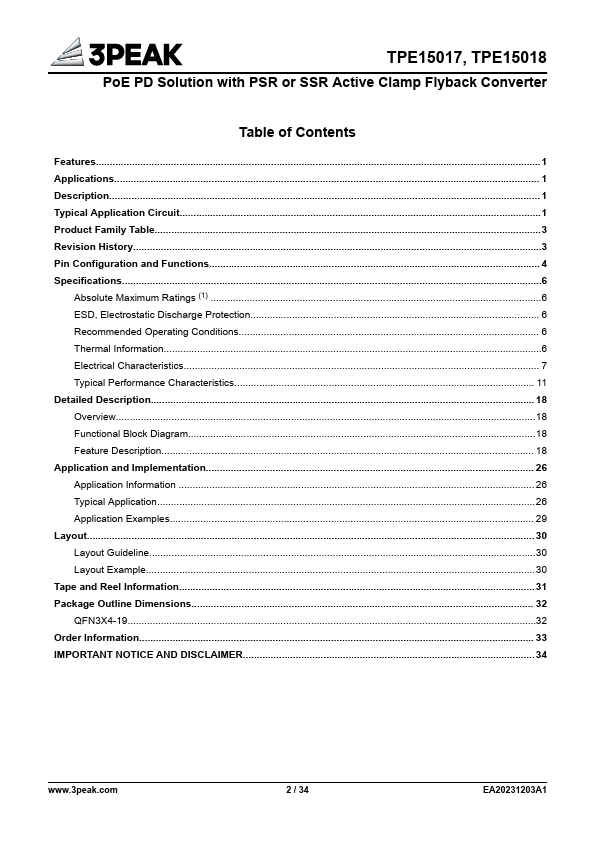

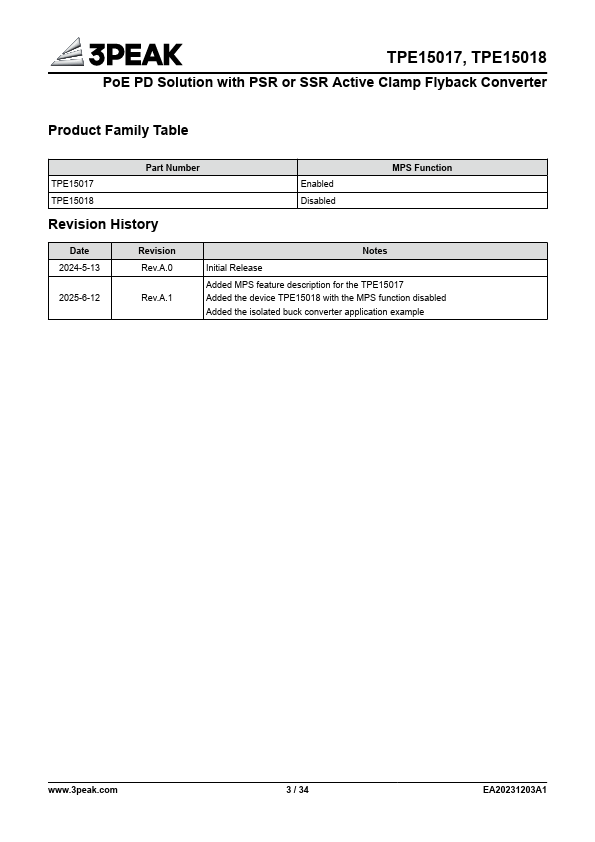

Additional preview pages of the TPE15017 datasheet.

TPE15017 Product details

Description

Compatible with 802.3af Specifications 100-V 0.56-Ω PD Input MOSFET Active Clamp Primary-Side Regulated (PSR) Flyback without Aux-winding Active Clamp Secondary-Side Regulated (SSR) Flyback through Opto-coupler 0.36-Ω and 0.78-Ω Integral Flyback MOSFETs Programmable up to 650-kHz Frequency 1.5-A Switching Current Limit Output Diode Compensation in PSR Mode Programmable Soft-Start Time Frequency F
