TPB4056A 1-A Single Cell Battery Linear Charger

TPB4056A Description

TPB4056A 1-A Single Cell Battery Linear Charger with High Input Voltage .
The TPB4056A is a cost-effective, high-integration linear charger for single cell Li-ion or Li-ion polymer batteries.

TPB4056A Features

* Single-Chip Charger for 1-cell Li-ion or Polymer Battery
* Constant-Current/Constant-Voltage Battery Charge
* Maximum 1000 mA Programmable Charge Current
* Protection
* Wide Input From 4.55 V to 6.8 V or to 10.5 V, up to 26.5 V
* Charging Current Monitor and Thermal

TPB4056A Applications

* Portable Devices, GPS, ePOS, e-cigarette, Walkie-talkie
* Wireless Devices, Bluetooth Headset
* Personal Electronics, Personal Healthcare

📥 Download Datasheet

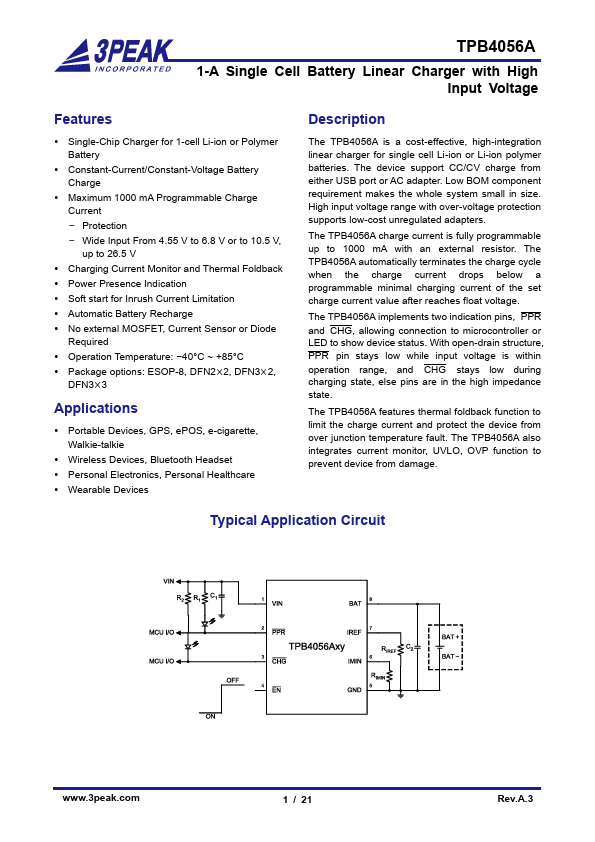

Preview of TPB4056A PDF

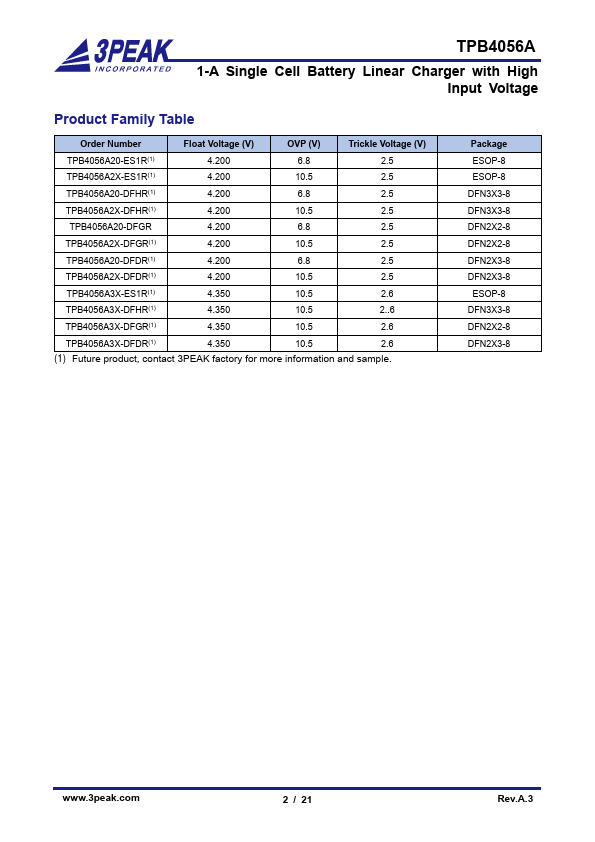

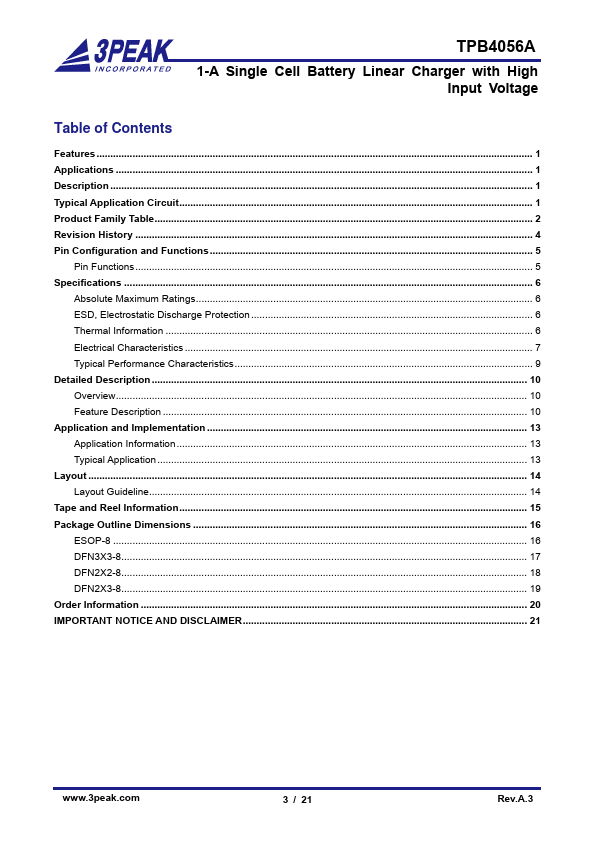

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPB4056A
Manufacturer
3PEAK
File Size
852.25 KB
Datasheet
TPB4056A-3PEAK.pdf
Description
1-A Single Cell Battery Linear Charger
