TPA1285 - 2ch Current Sense Amplifier

The TPA1285 by 3PEAK is a 2ch Current Sense Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the TPA1285 2ch Current Sense Amplifier datasheet (3PEAK).

Datasheet Details

Part number TPA1285
Manufacturer 3PEAK
File Size 809.83 KB
Description 2ch Current Sense Amplifier
Datasheet download datasheet TPA1285-3PEAK.pdf
Additional preview pages of the TPA1285 datasheet.

TPA1285 Product details

Description

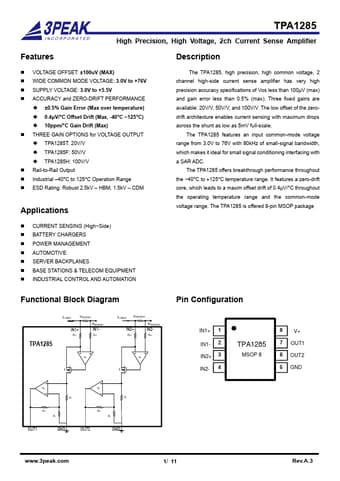

VOLTAGE OFFSET: ±100uV (MAX) WIDE COMMON MODE VOLTAGE: 3.0V to +76V SUPPLY VOLTAGE: 3.0V to +5.5V ACCURACY and ZERO-DRIFT PERFORMANCE ±0.5% Gain Error (Max over temperature) 0.4μV/°C Offset Drift (Max, -40°C ~125°C) 10ppm/°C Gain Drift (Max) THREE GAIN OPTIONS for VOLTAGE OUTPUT TPA1285T: 20V/V TPA1285F: 50V/V TPA1285H: 100V/V Rail-to-Rail Output Industrial 40°C to 125°C Operation Range ESD Rating: Robu
