LM324A, LM321A - 36V General Purpose Op Amps

3PEAK

The LM324A by 3PEAK is a 36V General Purpose Op Amps. Below is the official datasheet preview.

📥 Download Datasheet

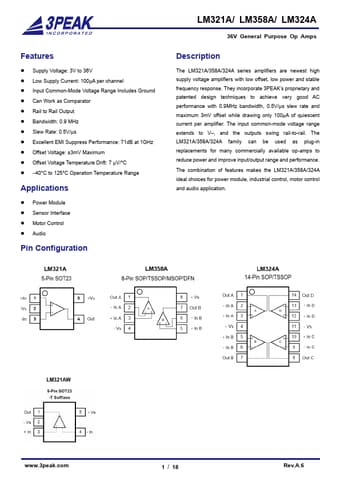

LM324A 36V General Purpose Op Amps by 3PEAK - Datasheet Preview — Official preview page of the **LM324A** 36V General Purpose Op Amps datasheet (3PEAK).

Datasheet Details

Part number	LM324A, LM321A
Manufacturer	3PEAK
File Size	1.10 MB
Description	36V General Purpose Op Amps
Datasheet	LM321A-3Peak.pdf
Note	This datasheet PDF includes multiple part numbers: LM324A, LM321A. Please refer to the document for exact specifications by model.
Additional preview pages of the LM324A datasheet.

LM324A Product details

Description

The LM321A/358A/324A series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable frequency response. , and the outputs swing rail-to-rail.

Features

Supply Voltage: 3V to 36V.
Low Supply Current: 100μA per channel.
Input Common-Mode Voltage Range Includes Ground.
Can Work as Comparator.
Rail to Rail Output.
Bandwidth: 0.9 MHz.
Slew Rate: 0.5V/μs.
Excellent EMI Suppress Performance: 71dB at 1GHz.
Offset Voltage: ±3mV Maximum.
Offset Voltage Temperature Drift: 7 μV/°C.
40°C to 125°C Operation Temperature Range.
