ICO-083-S8X-T - DIP Socket

Download the ICO-083-S8X-T datasheet PDF. This datasheet also covers the ICO variant, as both devices belong to the same dip socket family and are provided as variant models within a single manufacturer datasheet.

Description

ICO-063-S8X-T ICO-083-S8X-T ICO-143-S8X-T ICO-163-S8X-T ICO-183-S8X-T ICO-203-S8X-T ICO-243-S8X-T ICO-246-S8X-T ICO-286-S8X-T ICO-326-S8X-T ICO-406-S8X-T ICO-486-S8X-T Dimension A 0.295 [7.49] .395 [10.03] .695 [17.65] .795 [20.19] .895 [22.73] .995 [25.27] 1.195 [30.35] 1.195 [30.35] 1.395 [35.43]

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ICO_3M.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ICO-083-S8X-T
Manufacturer 3M
File Size 484.54 KB
Description DIP Socket
Datasheet download datasheet ICO-083-S8X-T Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ICOP-6042VE Embedded Vortex86 Half-Size AIO SBC ICOP

Other Datasheets by 3M

Part Number Description
ICO-063-S8X-T DIP Socket
ICO-143-S8X-T DIP Socket
ICO-163-S8X-T DIP Socket
ICO-183-S8X-T DIP Socket
ICO-203-S8X-T DIP Socket

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

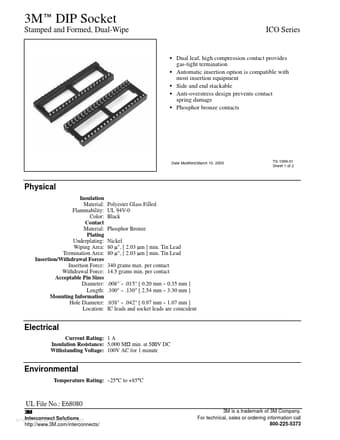

3M DIP Socket Stamped and Formed, Dual-Wipe ICO Series S Dual leaf, high compression contact provides gas-tight termination S Automatic insertion option is compatible with most insertion equipment S Side and end stackable S Anti-overstress design prevents contact spring damage S Phosphor bronze contacts Date Modified:March 10, 2003 TS-1099-01 Sheet 1 of 2 Physical Insulation Material: Flammability: Color: Contact Material: Plating Underplating: Wiping Area: Termination Area: Insertion/Withdrawal Forces Insertion Force: Withdrawal Force: Acceptable Pin Sizes Diameter: Length: Mounting Information Hole Diameter: Location: Polyester Glass Filled UL 94V-0 Black Phosphor Bronze Nickel 80 µ″, [ 2.03 µm ] min. Tin Lead 80 µ″, [ 2.03 µm ] min. Tin Lead 340 grams max. per contact 14.
