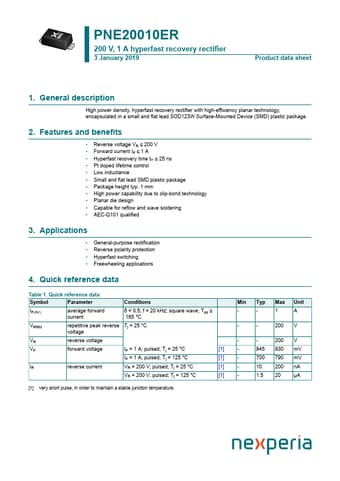

PNE20010ER
200 V, 1 A hyperfast recovery rectifier
3 January 2019
Product data sheet
1. General description
High power density, hyperfast recovery rectifier with high-efficiency planar technology,
encapsulated in a small and flat lead SOD123W Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
Reverse voltage VR ≤ 200 V
Forward current IF ≤ 1 A
Hyperfast recovery time trr ≤ 25 ns
Pt doped lifetime control
Low inductance
Small and flat lead SMD plastic package
Package height typ. 1 mm
High power capability due to clip-bond technology
Planar die design
Capable for reflow and wave soldering
AEC-Q101 qualified
3. Applications
General-purpose rectification
Reverse polarity protection
Hyperfast switching
Freewheeling applications
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Conditions
IF(AV)
average forward
current
δ = 0.5; f = 20 kHz; square wave; Tsp
165 °C
VRRM
repetitive peak reverse Tj = 25 °C
voltage
VR reverse voltage
VF
forward voltage
IF = 1 A; pulsed; Tj = 25 °C
IF = 1 A; pulsed; Tj = 125 °C
IR
reverse current
VR = 200 V; pulsed; Tj = 25 °C
VR = 200 V; pulsed; Tj = 125 °C
[1]
[1]
[1]
[1]
[1] Very short pulse, in order to maintain a stable junction temperature.
Min Typ Max Unit
- - 1A
- - 200 V
- - 200 V
- 845 930 mV
- 700 790 mV
- 10 200 nA
-
1.5 20
µA




nexperia

PNE20010ER Datasheet Preview

PNE20010ER Datasheet

1A hyperfast recovery rectifier

No Preview Available !

Nexperia
PNE20010ER
200 V, 1 A hyperfast recovery rectifier
5. Pinning information
Table 2. Pinning information
Pin Symbol Description
1 K cathode
2 A anode
Simplified outline
12
CFP3 (SOD123W)
Graphic symbol
KA
006aab040
6. Ordering information
Table 3. Ordering information
Type number
Package
Name
PNE20010ER
CFP3
Description
Version
plastic, surface mounted package; 2 terminals; 2.6 mm x 1.7 mm SOD123W
x 1 mm body
7. Marking
Table 4. Marking codes
Type number
PNE20010ER
Marking code
K3
PNE20010ER
Product data sheet
All information provided in this document is subject to legal disclaimers.
3 January 2019
© Nexperia B.V. 2019. All rights reserved
2 / 13
