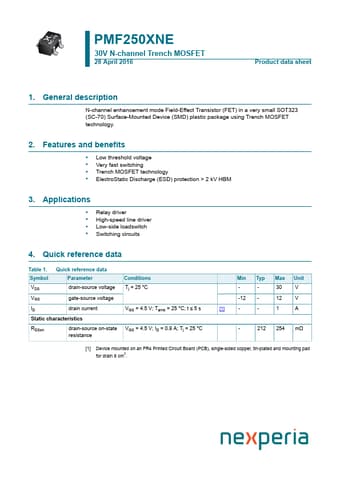

PMF250XNE
30V N-channel Trench MOSFET
28 April 2016
Product data sheet
1. General description
N-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT323
(SC-70) Surface-Mounted Device (SMD) plastic package using Trench MOSFET
technology.
2. Features and benefits
Low threshold voltage
Very fast switching
Trench MOSFET technology
ElectroStatic Discharge (ESD) protection > 2 kV HBM
3. Applications
Relay driver
High-speed line driver
Low-side loadswitch
Switching circuits
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VDS drain-source voltage
VGS gate-source voltage
ID drain current
Static characteristics
RDSon
drain-source on-state
resistance
Conditions
Tj = 25 °C
VGS = 4.5 V; Tamb = 25 °C; t ≤ 5 s
VGS = 4.5 V; ID = 0.9 A; Tj = 25 °C
Min Typ Max Unit
- - 30 V
-12 -
12 V
[1] - - 1 A
- 212 254 mΩ
[1] Device mounted on an FR4 Printed Circuit Board (PCB), single-sided copper, tin-plated and mounting pad
for drain 6 cm2.




nexperia

PMF250XNE Datasheet Preview

PMF250XNE Datasheet

N-channel MOSFET

No Preview Available !

Nexperia
PMF250XNE
30V N-channel Trench MOSFET
5. Pinning information
Table 2. Pinning information
Pin Symbol Description
1 G gate
2 S source
3 D drain
Simplified outline
3
Graphic symbol
D
12
SC-70 (SOT323)
G
S
017aaa255
6. Ordering information
Table 3. Ordering information
Type number
Package
Name
PMF250XNE
SC-70
Description
plastic surface-mounted package; 3 leads
Version
SOT323
7. Marking
Table 4. Marking codes
Type number
PMF250XNE
Marking code
[1]
Z%W
[1] % = placeholder for manufacturing site code
PMF250XNE
Product data sheet
All information provided in this document is subject to legal disclaimers.
28 April 2016
© Nexperia B.V. 2017. All rights reserved
2 / 15
