NEX10000UB - 80mA dual output LCD bias power supply

Description

The NEX10000 is a power supply IC providing programmable positive and negative output voltages for TFT-LCD panels.

Features

  • Input voltage range: 2.7 V to 5 V.
  • Programmable output voltages:.
  • OUTP: +4 V to +6 V (0.1 V step).
  • OUTN: -4 V to -6 V (0.1 V step).
  • Maximum output current: 80 mA.
  • 86% high efficiency at 40 mA combined output.
  • ±1% output voltage accuracy.
  • Excellent transient response.
  • I²C Interface:.
  • Flexible output voltage programming.
  • Integrated active output discharge function.
  • UVLO and OTSD protection.

📥 Download Datasheet

Datasheet Details

Part number NEX10000UB
Manufacturer Nexperia
File Size 5.15 MB
Description 80mA dual output LCD bias power supply
Datasheet download datasheet NEX10000UB Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NEXA104Z11V28.5x25.5F Memory Back-Up Capacitors NIC
NEXA104Z5.5V21.5x15.5F Memory Back-Up Capacitors NIC
NEXA105Z5.5V44.5x18.5F Memory Back-Up Capacitors NIC
NEXA223Z11V16x25F Memory Back-Up Capacitors NIC
NEXA224Z11V36.5x27.5F Memory Back-Up Capacitors NIC

Other Datasheets by Nexperia

Part Number Description
NEX10000AUB 120mA dual output LCD bias power supply
NEX10001UB 220mA dual output LCD bias power supply
NEX13120-Q100 12-channel automotive linear LED driver
NEX13120F-Q100 12-channel automotive linear LED driver
NEX1324X-Q100 24-channel automotive linear LED driver

Full PDF Text Transcription

Click to expand full text

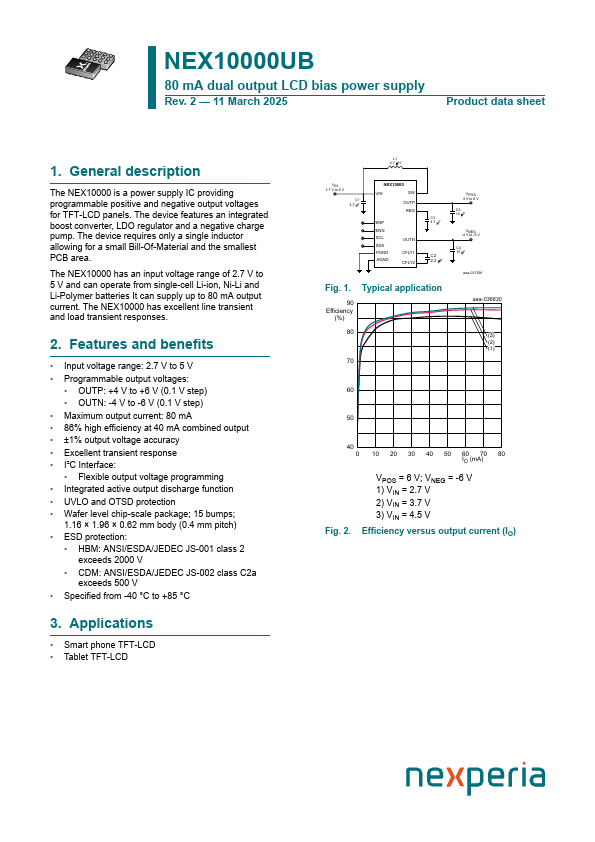

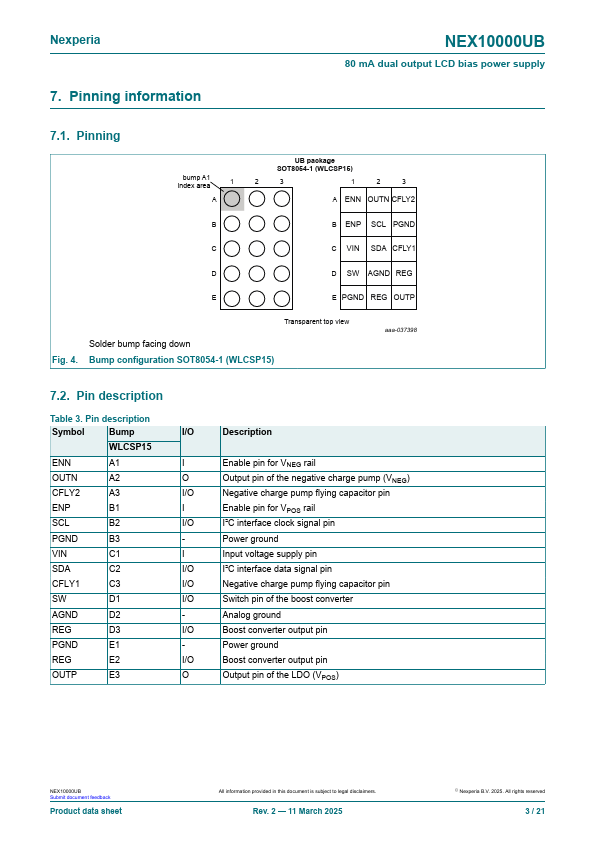

NEX10000UB 80 mA dual output LCD bias power supply Rev. 2 — 11 March 2025 Product data sheet 1. General description The NEX10000 is a power supply IC providing programmable positive and negative output voltages for TFT-LCD panels. The device features an integrated boost converter, LDO regulator and a negative charge pump. The device requires only a single inductor allowing for a small Bill-Of-Material and the smallest PCB area. The NEX10000 has an input voltage range of 2.7 V to 5 V and can operate from single-cell Li-ion, Ni-Li and Li-Polymer batteries It can supply up to 80 mA output current. The NEX10000 has excellent line transient and load transient responses. 2. Features and benefits • Input voltage range: 2.7 V to 5 V • Programmable output voltages: • OUTP: +4 V to +6 V (0.
