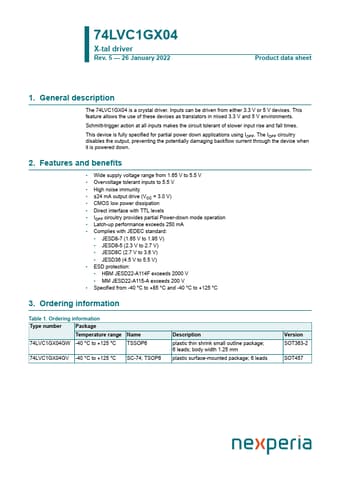

74LVC1GX04 driver equivalent, x-tal driver.
* Wide supply voltage range from 1.65 V to 5.5 V
* Overvoltage tolerant inputs to 5.5 V
* High noise immunity
* ±24 mA output drive (VCC = 3.0 V)
* CM.
using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the dev.
The 74LVC1GX04 is a crystal driver. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments.
Schmitt-trigger action at all inputs makes the circuit toleran.
