74LVC1G18 - 1-of-2 non-inverting demultiplexer

General Description

The 74LVC1G18 is a 1-to-2 demultiplexer with 3-state outputs.

The device buffers the data on input A and passes it to output 1Y or 2Y, depending on whether the state of the select input (S) is LOW or HIGH.

The unused output assumes the high impedence OFF-state.

Key Features

  • Wide supply voltage range from 1.65 V to 5.5 V.
  • Overvoltage tolerant inputs to 5.5 V.
  • High noise immunity.
  • ±24 mA output drive (VCC = 3.0 V).
  • CMOS low power dissipation.
  • Latch-up performance exceeds 250 mA.
  • Direct interface with TTL levels.
  • IOFF circuitry provides partial Power-down mode operation.
  • Complies with JEDEC standard:.
  • JESD8-7 (1.65 V to 1.95 V).
  • JESD8-5 (2.3 V to 2.7 V).
  • JESD8C.

📥 Download Datasheet

Datasheet Details

Part number 74LVC1G18
Manufacturer Nexperia
File Size 218.11 KB
Description 1-of-2 non-inverting demultiplexer
Datasheet download datasheet 74LVC1G18 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74LVC1G18 1-of-2 non-inverting demultiplexer NXP
74LVC1G10 SINGLE 3 INPUT POSITIVE NAND GATE Diodes
74LVC1G11 Single 3-input AND gate NXP
74LVC1G11 SINGLE 3 INPUT POSITIVE AND GATE Diodes
74LVC1G123 Single retriggerable monostable multivibrator NXP

Other Datasheets by Nexperia

Part Number Description
74LVC1G18-Q100 1-of-2 non-inverting demultiplexer
74LVC1G10 Single 3-input NAND gate
74LVC1G10-Q100 Single 3-input NAND gate
74LVC1G11 Single 3-input AND gate
74LVC1G11-Q100 Single 3-input AND gate

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

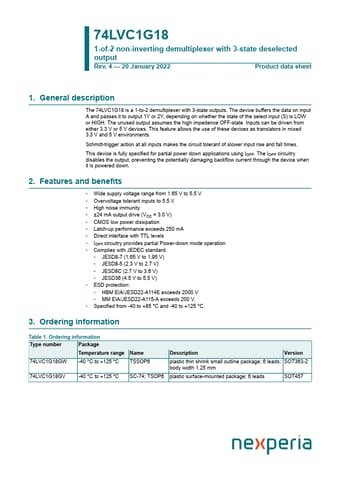

74LVC1G18 1-of-2 non-inverting demultiplexer with 3-state deselected output Rev. 4 — 20 January 2022 Product data sheet 1. General description The 74LVC1G18 is a 1-to-2 demultiplexer with 3-state outputs. The device buffers the data on input A and passes it to output 1Y or 2Y, depending on whether the state of the select input (S) is LOW or HIGH. The unused output assumes the high impedence OFF-state. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using IOFF.
