74CBTLVD3861 - 10-bit level-shifting bus switch

General Description

The 74CBTLVD3861 is a 10-bit 3.3 V to 1.8 V level translating bus switch with one output enable (OE) input.

When OE is LOW, the switch is closed and port A is connected to the B port.

When OE is HIGH, the switch is disabled.

Key Features

  • Supply voltage range from 3.0 V to 3.6 V.
  • High noise immunity.
  • Complies with JEDEC standard:.
  • JESD8-B/JESD36 (3.0 V to 3.6 V).
  • ESD protection:.
  • HBM JESD22-A114F exceeds 2000 V.
  • CDM AEC-Q100-011 revision B exceeds 1000 V.
  • 4 Ω switch connection between two ports.
  • 3.3 V to 1.8 V level translation.
  • CMOS low power consumption.
  • Latch-up performance exceeds 250 mA per JESD78B Class I level A.
  • IO.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74CBTLV16210 LOW-VOLTAGE 20-BIT BUS SWITCH Renesas
74CBTLV16212 LOW-VOLTAGE 24-BIT BUS EXCHANGE SWITCH IDT
74CBTLV16212 LOW-VOLTAGE 24-BIT BUS EXCHANGE SWITCH Renesas
74CBTLV3125 4-bit bus switch NXP
74CBTLV3126 4-bit Bus Switch NXP

Other Datasheets by Nexperia

Part Number Description
74CBTLVD3244 8-bit level-shifting bus switch
74CBTLVD3245 8-bit level-shifting bus switch
74CBTLVD3245-Q100 8-bit level-shifting bus switch
74CBTLVD3384 10-bit level-shifting bus switch
74CBTLV1G125 Single bus switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

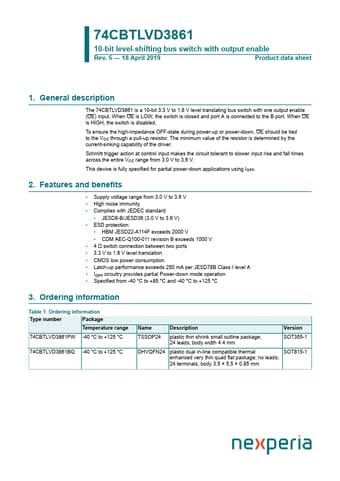

74CBTLVD3861 10-bit level-shifting bus switch with output enable Rev. 5 — 18 April 2019 Product data sheet 1. General description The 74CBTLVD3861 is a 10-bit 3.3 V to 1.8 V level translating bus switch with one output enable (OE) input. When OE is LOW, the switch is closed and port A is connected to the B port. When OE is HIGH, the switch is disabled. To ensure the high-impedance OFF-state during power-up or power-down, OE should be tied to the VCC through a pull-up resistor. The minimum value of the resistor is determined by the current-sinking capability of the driver. Schmitt trigger action at control input makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 3.0 V to 3.6 V.
