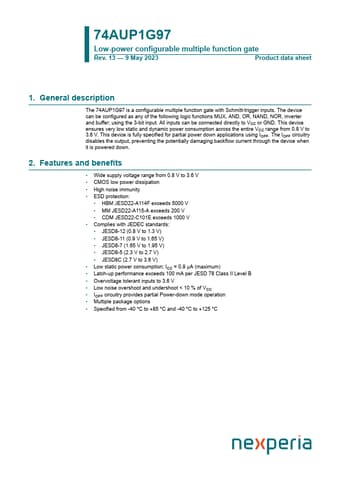

74AUP1G97 datasheet, gate equivalent, nexperia

Features and benefits

* Wide supply voltage range from 0.8 V to 3.6 V
* CMOS low power dissipation
* High noise immunity
* ESD protection:
* HBM JESD22-A114F exceeds 5000 V.

Application

using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the dev.

Description

The 74AUP1G97 is a configurable multiple function gate with Schmitt-trigger inputs. The device can be configured as any of the following logic functions MUX, AND, OR, NAND, NOR, inverter and buffer; using the 3-bit input. All inputs can be connected .
