74AHC1G4215 - 15-stage divider/oscillator

Description

74AHC1G4215 is a 15-stage divider and oscillator.

It consists of a chain of 15 flip-flops.

Each flip-flop divides the frequency of the previous flip-flop by two, consequently the 74AHC1G4215 counts up to 215 = 32768.

Features

  • Wide supply voltage range from 2.0 V to 5.5 V.
  • Overvoltage tolerant inputs to 5.5 V.
  • High noise immunity.
  • CMOS low power dissipation.
  • ESD protection:.
  • HBM: ANSI/ESDA/Jedec JS-001 exceeds 2000 V.
  • CDM: ANSI/ESDA/Jedec JS-002 exceeds 1000 V.
  • Latch-up performance exceeds 100 mA per JESD 78 Class II.
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C 3. Ordering information Table 1. Ordering information Type.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74AHC1G00 2-input NAND gate NXP
74AHC1G00 SINGLE 2 INPUT POSITIVE NAND GATE Diodes
74AHC1G00 Single 2-Input Positive-NAND Gate Texas Instruments
74AHC1G00SE SINGLE 2 INPUT POSITIVE NAND GATE Diodes
74AHC1G00W5 SINGLE 2 INPUT POSITIVE NAND GATE Diodes

Other Datasheets by Nexperia

Part Number Description
74AHC1G4210 10-stage divider/oscillator
74AHC1G4210-Q100 10-stage divider/oscillator
74AHC1G4212 12-stage divider/oscillator
74AHC1G4212-Q100 12-stage divider/oscillator
74AHC1G4214 14-stage divider/oscillator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

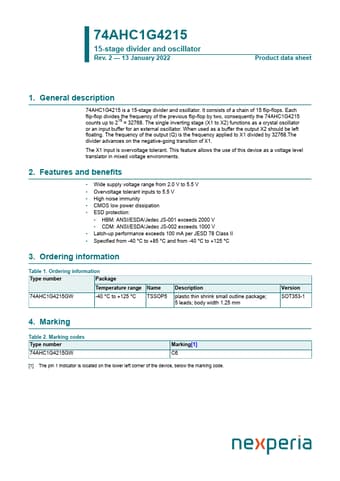

74AHC1G4215 15-stage divider and oscillator Rev. 2 — 13 January 2022 Product data sheet 1. General description 74AHC1G4215 is a 15-stage divider and oscillator. It consists of a chain of 15 flip-flops. Each flip-flop divides the frequency of the previous flip-flop by two, consequently the 74AHC1G4215 counts up to 215 = 32768. The single inverting stage (X1 to X2) functions as a crystal oscillator or an input buffer for an external oscillator. When used as a buffer the output X2 should be left floating. The frequency of the output (Q) is the frequency applied to X1 divided by 32768.The divider advances on the negative-going transition of X1. The X1 input is overvoltage tolerant. This feature allows the use of this device as a voltage level translator in mixed voltage environments. 2.
