SAWEN1G84CV0F00R15 - SAW FILTER

Download the SAWEN1G84CV0F00R15 datasheet PDF. This datasheet also covers the SAWEN1G84CV0F00R00 variant, as both devices belong to the same saw filter family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SAWEN1G84CV0F00R00-muRata.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SAW MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Rubycon
SAW09H0A LED Seoul Semiconductor
SAW0L7PA Superior high Flux Seoul Semiconductor
SAW0LA0A Superior high Flux Seoul Semiconductor
SAW0LH0A Superior high Flux Seoul Semiconductor

Other Datasheets by Murata

Part Number Description
SAWEN1G84CV0F00R00 SAW FILTER
SAWEN1G84CW0F00R12 SAW FILTER
SAWEN1G84CW0F00R14 SAW FILTER
SAWEN1G90PA0F0A SAW Dual Filter
SAWEN2G35PN0F0A SAW Dual Filter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

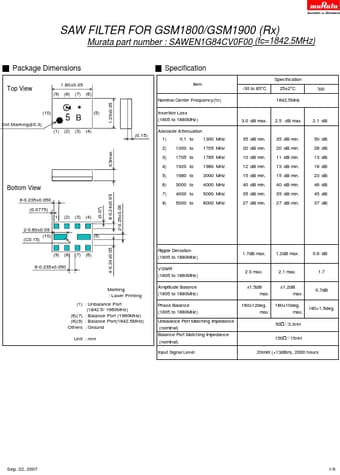

SAW FILTER FOR GSM1800/GSM1900 (Rx) Murata part number : SAWEN1G84CV0F00 (fc=1842.5MHz) Package Dimensions Top View 1.80±0.05 (9) (8) (7) (6) 5 B(10) (5) Dot Marking(0.3) (1) (2) (3) (4) 1.35±0.05 (0.15) 0.5max. (0.07) 8-0.24±0.05 2-0.25±0.05 Bottom View 8-0.235±0.050 (0.0775) (1) (2) (3) (4) 2-0.60±0.05 (10) (C0.15) (5) (9) (8) (7) (6) 6-0.235±0.050 4-0.24±0.05 Marking : Laser Printing (1) : Unbalance Port (1842.5/ 1960MHz) (6)(7) : Balance Port (1960MHz) (8)(9) : Balance Port(1842.5MHz) Others : Ground Unit : mm Specification Item Nominal Center Frequency(fc) Insertion Loss (1805 to 1880MHz) Absolute Attenuation 1) 0.
