TPSI3050S, TPSI3050 - Isolated Switch Driver

Texas Instruments

The TPSI3050S by Texas Instruments is a Isolated Switch Driver. Below is the official datasheet preview.

📥 Download Datasheet

TPSI3050S Isolated Switch Driver by Texas Instruments - Datasheet Preview — Official preview page of the **TPSI3050S** Isolated Switch Driver datasheet (Texas Instruments).

Datasheet Details

Part number	TPSI3050S, TPSI3050
Manufacturer	Texas Instruments
File Size	4.07 MB
Description	Isolated Switch Driver
Datasheet	TPSI3050-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TPSI3050S, TPSI3050. Please refer to the document for exact specifications by model.

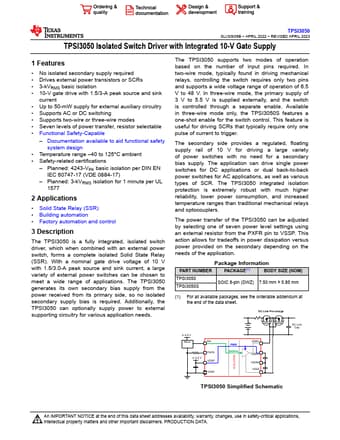

Additional preview pages of the TPSI3050S datasheet.

TPSI3050S Product details

Description

The TPSI3050 is a fully integrated, isolated switch driver, which when combined with an external power switch, forms a complete isolated Solid State Relay (SSR).

Features

No isolated secondary supply required.
Drives external power transistors or SCRs.
3-kVRMS basic isolation.
10-V gate drive with 1.5/3-A peak source and sink current.
Up to 50-mW supply for external auxiliary circuitry.
Supports AC or DC switching.
Supports two-wire or three-wire modes.
Seven levels of power transfer, resistor selectable.
Functional Safety-Capable.
Documentation available to aid functional.
