TLV70028 - 200-mA Low-Dropout Regulator

Download the TLV70028 datasheet PDF. This datasheet also covers the TLV700 variant, as both devices belong to the same 200-ma low-dropout regulator family and are provided as variant models within a single manufacturer datasheet.

General Description

The TLV700 series of low-dropout (LDO) linear regulators are low quiescent current devices with excellent line and load transient performance.

These LDOs are designed for power-sensitive applications.

A precision bandgap and error amplifier provides overall 2% accuracy.

Key Features

  • 1 Very Low Dropout:.
  • 43 mV at IOUT = 50 mA, VOUT = 2.8 V.
  • 85 mV at IOUT = 100 mA, VOUT = 2.8 V.
  • 175 mV at IOUT = 200 mA, VOUT = 2.35 V.
  • 2% Accuracy.
  • Low IQ: 31 μA.
  • Available in Fixed-Output Voltages from 1.2 V to 4.8 V.
  • High PSRR: 68 dB at 1 kHz.
  • Stable With Effective Capacitance of 0.1 μF(1).
  • Thermal Shutdown and Overcurrent Protection.
  • Available in 1.5-mm × 1.5-mm SON-6, SOT23-5, and SC-70 Packag.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TLV700-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
TLV271 Operational Amplifier ON Semiconductor
TLV271 CMOS RAIL TO RAIL OUTPUT OPERATIONAL AMPLIFIERS Diodes
TLV272 Operational Amplifier ON Semiconductor
TLV272 CMOS RAIL TO RAIL OUTPUT OPERATIONAL AMPLIFIERS Diodes
TLV274 Operational Amplifier ON Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
TLV70022 200-mA Low-Dropout Regulator
TLV70025 200-mA Low-Dropout Regulator
TLV70025-Q1 Low-Dropout Regulator
TLV70029 200-mA Low-Dropout Regulator
TLV700 200-mA Low-Dropout Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

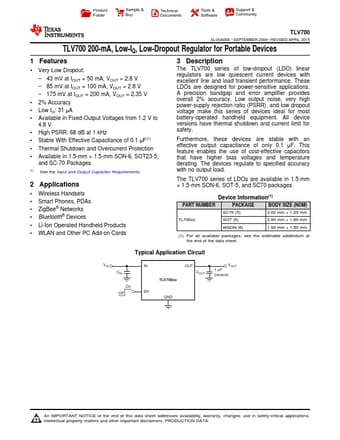

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TLV700 SLVSA00E – SEPTEMBER 2009 – REVISED APRIL 2015 TLV700 200-mA, Low-IQ, Low-Dropout Regulator for Portable Devices 1 Features •1 Very Low Dropout: – 43 mV at IOUT = 50 mA, VOUT = 2.8 V – 85 mV at IOUT = 100 mA, VOUT = 2.8 V – 175 mV at IOUT = 200 mA, VOUT = 2.35 V • 2% Accuracy • Low IQ: 31 μA • Available in Fixed-Output Voltages from 1.2 V to 4.8 V • High PSRR: 68 dB at 1 kHz • Stable With Effective Capacitance of 0.1 μF(1) • Thermal Shutdown and Overcurrent Protection • Available in 1.5-mm × 1.5-mm SON-6, SOT23-5, and SC-70 Packages (1) See the Input and Output Capacitor Requirements.
