ISO7221A-Q1, ISO7220A-Q1 - DUAL DIGITAL ISOLATORS

Texas Instruments

📥 Download Datasheet

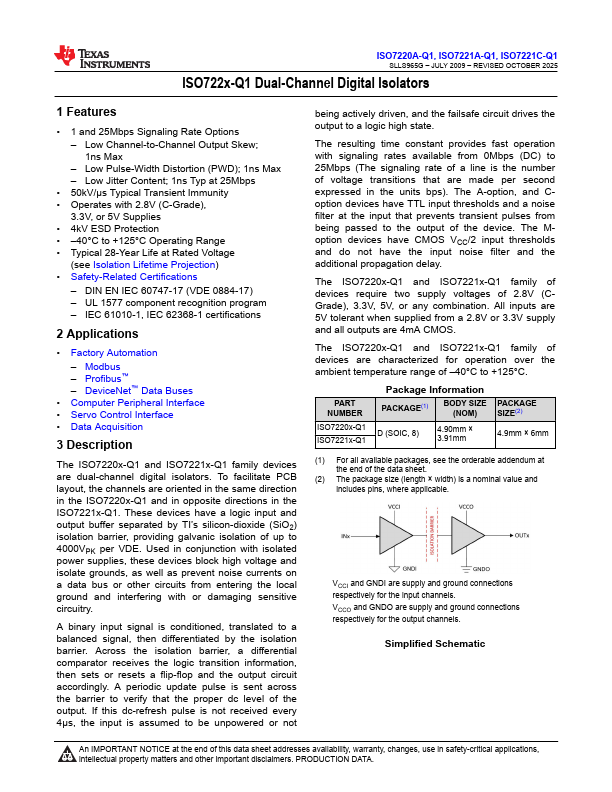

ISO7221A-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISO7221A-Q1, ISO7220A-Q1. Please refer to the document for exact specifications by model.

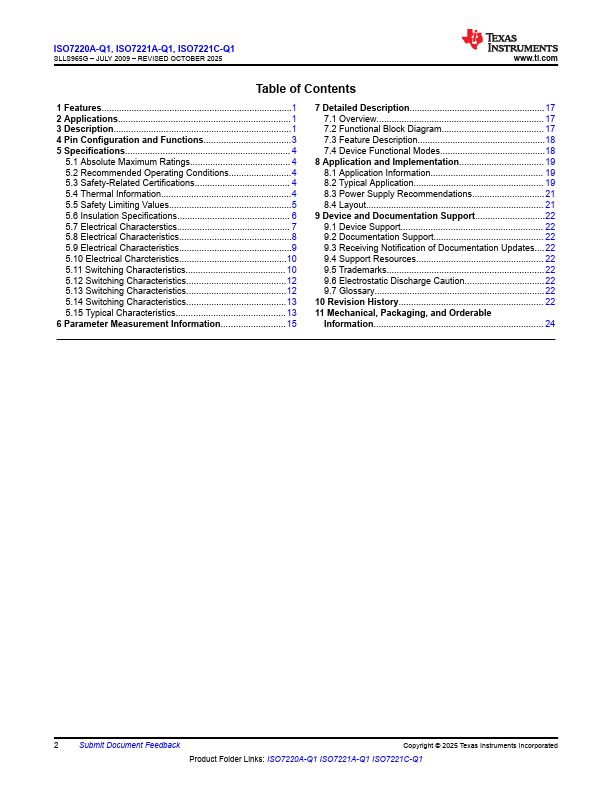

datasheet Preview Page 2

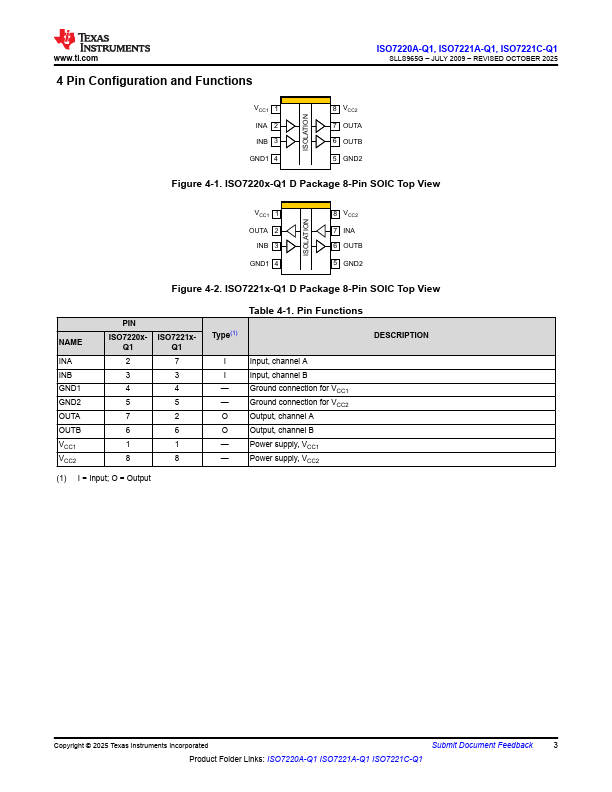

datasheet Preview Page 3

Datasheet Details

Part number	ISO7221A-Q1, ISO7220A-Q1
Manufacturer	Texas Instruments ↗
File Size	1.46 MB
Description	DUAL DIGITAL ISOLATORS
Datasheet	ISO7220A-Q1-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: ISO7221A-Q1, ISO7220A-Q1. Please refer to the document for exact specifications by model.

ISO7221A-Q1 Product details

Description

The ISO7220x-Q1 and ISO7221x-Q1 family devices are dual-channel digital isolators.

Features

1 and 25Mbps Signaling Rate Options.
Low Channel-to-Channel Output Skew; 1ns Max.
Low Pulse-Width Distortion (PWD); 1ns Max.
Low Jitter Content; 1ns Typ at 25Mbps.
50kV/μs Typical Transient Immunity.
Operates with 2.8V (C-Grade), 3.3V, or 5V Supplies.
4kV ESD Protection.
40°C to +125°C Operating Range.
Typical 28-Year Life at Rated Voltage (see Isolation Lifetime Projection).
Safety-Related Certif.
