GBJ6D - 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

Download the GBJ6D datasheet PDF. This datasheet also covers the GBJ6A-WON variant, as both devices belong to the same 6.0a glass passivated single phase bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Glass Passivated Die Construction.
  • Low Forward Voltage Drop.
  • High Current Capability.
  • High Reliability.
  • High Surge Current Capability.
  • Ideal for Printed Circuit Boards.
  • Recognized File # E157705 G C H J Mechanical Data.
  • Case: GBJ-6, Molded Plastic.
  • Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
  • Polarity: As Marked on Body.
  • Weight: 7.0 grams (approx. ).
  • Mounting Position: Any.
  • Mounting Torque: 0.8 N. m Max.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBJ6A-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBJ6D
Manufacturer WON-TOP
File Size 41.40 KB
Description 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
Datasheet download datasheet GBJ6D Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBJ6D GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Pan Jit International Inc.
GBJ6D Bridge Rectifier Formosa MS
GBJ6D Glass Passivated Single-Phase Bridge Rectifiers GOOD-ARK
GBJ6D SILICON BRIDGE RECTIFIERS CHENG-YI
GBJ6DU Glass Passivated Single-Phase Bridge Rectifiers GOOD-ARK

Other Datasheets by WON-TOP

Part Number Description
GBJ6A 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
GBJ6B 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
GBJ6G 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
GBJ6J 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
GBJ6K 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

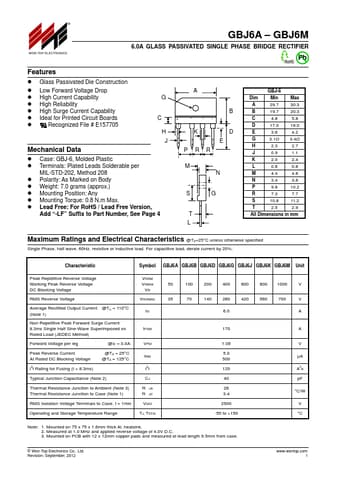

® WON-TOP ELECTRONICS GBJ6A – GBJ6M 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER Pb Features  Glass Passivated Die Construction  Low Forward Voltage Drop  High Current Capability  High Reliability  High Surge Current Capability  Ideal for Printed Circuit Boards  Recognized File # E157705 G C H J Mechanical Data  Case: GBJ-6, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: As Marked on Body  Weight: 7.0 grams (approx.)  Mounting Position: Any  Mounting Torque: 0.8 N.m Max.  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 A + ~ ~- B K P RR D E M N SG T L GBJ-6 Dim Min Max A 29.7 30.3 B 19.7 20.3 C 4.8 5.8 D 17.0 18.0 E 3.6 4.2 G 3.1Ø 3.4Ø H 2.3 2.7 J 0.9 1.1 K 2.0 2.4 L 0.6 0.
