5KP160 - 5000W TRANSIENT VOLTAGE SUPPRESSOR

Download the 5KP160 datasheet PDF. This datasheet also covers the 5KP5.0-WON variant, as both devices belong to the same 5000w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Glass Passivated Die Construction.
  • 5000W Peak Pulse Power Dissipation.
  • 5.0V.
  • 440V Standoff Voltage.
  • Uni- and Bi-Directional Versions Available.
  • Excellent Clamping Voltage.
  • Typical Response Time < 1nS.
  • Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data.
  • Case: P-600, Molded Plastic.
  • Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
  • Polarity: Cathode Band Except Bi-Directional.
  • Weight:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5KP5.0-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 5KP160
Manufacturer WON-TOP
File Size 96.42 KB
Description 5000W TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet 5KP160 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
5KP160 5000 Watt Axial Lead TVS GW
5KP160 Axial Lead Transient Voltage Suppressors SOCAY
5KP160 5000 Watt Peak Power Transient Voltage Suppressors SEP ELECTRONIC
5KP160 5kW POWER TVS COMPONENT Protek Devices
5KP160 Transient Voltage Suppressors HITANO

Other Datasheets by WON-TOP

Part Number Description
5KP160A 5000W TRANSIENT VOLTAGE SUPPRESSOR
5KP160C 5000W TRANSIENT VOLTAGE SUPPRESSOR
5KP160CA 5000W TRANSIENT VOLTAGE SUPPRESSOR
5KP16 5000W TRANSIENT VOLTAGE SUPPRESSOR
5KP16A 5000W TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

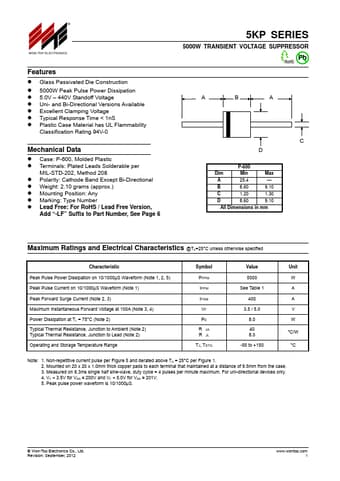

® WON-TOP ELECTRONICS Features  Glass Passivated Die Construction  5000W Peak Pulse Power Dissipation  5.0V – 440V Standoff Voltage  Uni- and Bi-Directional Versions Available  Excellent Clamping Voltage  Typical Response Time < 1nS  Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data  Case: P-600, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band Except Bi-Directional  Weight: 2.10 grams (approx.)  Mounting Position: Any  Marking: Type Number  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 6 5KP SERIES 5000W TRANSIENT VOLTAGE SUPPRESSOR Pb AB A D P-600 Dim Min Max A 25.4 — B 8.60 9.10 C 1.20 1.30 D 8.60 9.
