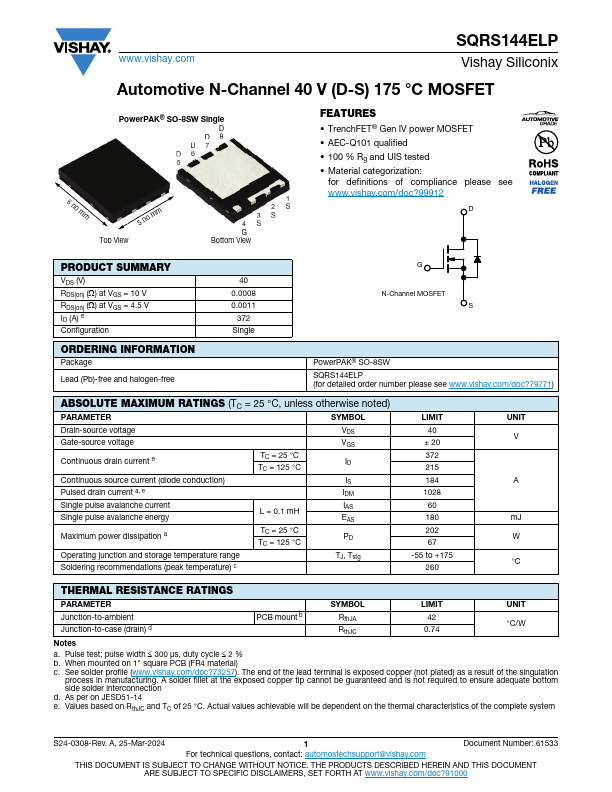

www.vishay.com
SQRS144ELP
Vishay Siliconix
Automotive N-Channel 40 V (D-S) 175 °C MOSFET
PowerPAK® SO-8SW Single D
D8 D7 D6 5
6.00 mm
5.00 mm
Top View
1 2S 3S 4S G Bottom View
FEATURES • TrenchFET® Gen IV power MOSFET • AEC-Q101 qualified • 100 % Rg and UIS tested • Material categorization:
for definitions of compliance please see www.vishay.com/doc?99912
D
PRODUCT SUMMARY
VDS (V) RDS(on) () at VGS = 10 V RDS(on) () at VGS = 4.5 V ID (A) e Configuration
40 0.0008 0.0011
372 Single
G
N-Channel MOSFET S
ORDERING INFORMATION
Package
Lead (Pb)-free and halogen-free
PowerPAK® SO-8SW
SQRS144ELP (for detailed order number please see www.vishay.
