RLA915 - Ceramic Disc Capacitors

Download the RLA915 datasheet PDF. This datasheet also covers the RLA910 variant, as both devices belong to the same ceramic disc capacitors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RLA910-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number RLA915
Manufacturer Vishay
File Size 153.13 KB
Description Ceramic Disc Capacitors
Datasheet download datasheet RLA915 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RLA9xx Ceramic Disc Capacitors Vishay Siliconix
RLA1xx Ceramic Disc Capacitors Vishay Siliconix
RLA4116 Laser Diode Roithner LaserTechnik

Other Datasheets by Vishay

Part Number Description
RLA910 Ceramic Disc Capacitors
RLA911 Ceramic Disc Capacitors
RLA912 Ceramic Disc Capacitors
RLA913 Ceramic Disc Capacitors
RLA916 Ceramic Disc Capacitors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

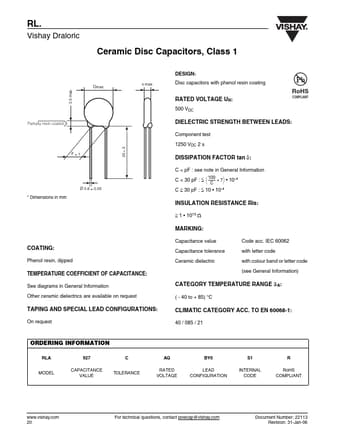

RL. Vishay Draloric Ceramic Disc Capacitors, Class 1 Dmax. Partially resin coated F±1 * Dimensions in mm Ø 0.6 ± 0.05 3.5 max. 25 + 5 s max. COATING: Phenol resin, dipped TEMPERATURE COEFFICIENT OF CAPACITANCE: See diagrams in General Information Other ceramic dielectrics are available on request TAPING AND SPECIAL LEAD CONFIGURATIONS: On request DESIGN: Disc capacitors with phenol resin coating RATED VOLTAGE UR: 500 VDC RoHS COMPLIANT DIELECTRIC STRENGTH BETWEEN LEADS: Component test 1250 VDC 2 s DISSIPATION FACTOR tan δ: C < pF : see note in General Information C < 30 pF : ≤ ⎛ ⎝ 1----0---0-C + 7⎠⎞ • 10-4 C ≥ 30 pF : ≤ 10 • 10-4 INSULATION RESISTANCE Ris: ≥ 1 • 1010 Ω MARKING: Capacitance value Capacitance tolerance Ceramic dielectric Code acc.
