UTG7N65-S - 650V TRENCH GATE FIELD-STOP IGBT

Datasheet Summary

Description

The UTC UTG7N65-S is an Trench Field-Stop Insulated Gate Bipolar Transistor.

it uses UTC’s advanced technology to provide customers with high switching speed, low saturation voltage and low switching loss, etc.

The UTC UTG7N65-S is suitable for the resonant or soft switching applications.

FEAT

Features

  • High switching speed.
  • High avalanche ruggedness.
  • Low saturation voltage: VCE(SAT). Typ. =1.5V @ IC=7.0A, VGE=15V (TC =25°C).
  • SYMBOL.

📥 Download Datasheet

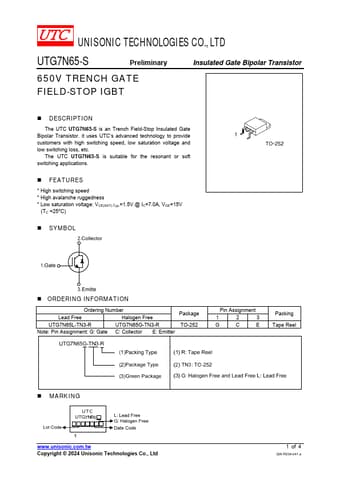

Datasheet preview – UTG7N65-S

Datasheet Details

Part number UTG7N65-S
Manufacturer UTC
File Size 198.99 KB
Description 650V TRENCH GATE FIELD-STOP IGBT
Datasheet download datasheet UTG7N65-S Datasheet
Additional preview pages of the UTG7N65-S datasheet.
