TQP369180 - DC-6 GHz Gain Block

Description

The TQP369180 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surfacemount package.

At 1.9 GHz, the amplifier typically provides 15.0 dB gain, +29.5 dBm OIP3, and 3.6 dB Noise Figure while drawing 45 mA current.

Features

  • DC-6000 MHz Flat, broadband frequency response 15 dB Gain at 1.9 GHz 3.6 dB Noise Figure at 1.9 GHz +29.5 dBm Output IP3 at 1.9 GHz +14.4 dBm P1dB at 1.9 GHz 50 Ohm Cascadable Gain Block Single Supply, 45 mA Current SOT-89 Package Functional Block Diagram GND 4 1 RF IN 2 GND 3 RF OUT General.

📥 Download Datasheet

Datasheet preview – TQP369180

Datasheet Details

Part number TQP369180
Manufacturer TriQuint Semiconductor
File Size 867.97 KB
Description DC-6 GHz Gain Block
Datasheet download datasheet TQP369180 Datasheet

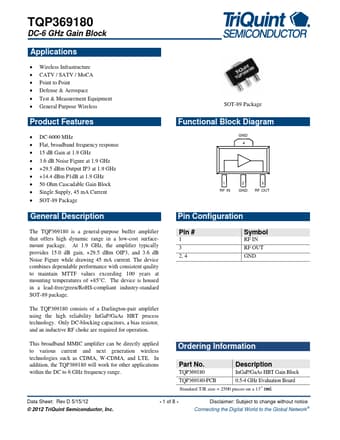

Additional preview pages of the TQP369180 datasheet.

📁 Similar Datasheet

Other Datasheets by TriQuint Semiconductor

Full PDF Text Transcription

Click to expand full text
TQP369180 DC-6 GHz Gain Block Applications       Wireless Infrastructure CATV / SATV / MoCA Point to Point Defense & Aerospace Test & Measurement Equipment General Purpose Wireless SOT-89 Package Product Features          DC-6000 MHz Flat, broadband frequency response 15 dB Gain at 1.9 GHz 3.6 dB Noise Figure at 1.9 GHz +29.5 dBm Output IP3 at 1.9 GHz +14.4 dBm P1dB at 1.9 GHz 50 Ohm Cascadable Gain Block Single Supply, 45 mA Current SOT-89 Package Functional Block Diagram GND 4 1 RF IN 2 GND 3 RF OUT General Description The TQP369180 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surfacemount package. At 1.9 GHz, the amplifier typically provides 15.0 dB gain, +29.5 dBm OIP3, and 3.6 dB Noise Figure while drawing 45 mA current.
