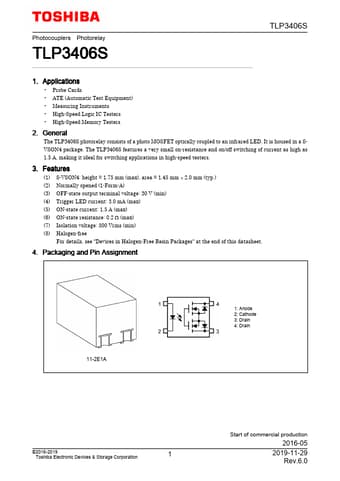

Photocouplers Photorelay
TLP3406S
TLP3406S
1. Applications
• Probe Cards • ATE (Automatic Test Equipment) • Measuring Instruments • High-Speed Logic IC Testers • High-Speed Memory Testers
2. General
The TLP3406S photorelay consists of a photo MOSFET optically coupled to an infrared LED. It is housed in a SVSON4 package. The TLP3406S features a very small on-resistance and on/off switching of current as high as 1.5 A, making it ideal for switching applications in high-speed testers.
3. Features
(1) S-VSON4: height = 1.75 mm (max), area = 1.45 mm × 2.0 mm (typ.) (2) Normally opened (1-Form-A) (3) OFF-state output terminal voltage: 30 V (min) (4) Trigger LED current: 3.0 mA (max) (5) ON-state current: 1.5 A (max) (6) ON-state resistance: 0.
