LT070AC46000 - Colour TFT LCD Module

Datasheet Summary

Features

  • (1)7”WVGA color display with High Luminance (300cd/m2) (2)Wide Viewing Angle(No Color Inversion) (3)LED Back Light(25,000 hours MTTF) (4)LED Unit Replaceable Structure.

📥 Download Datasheet

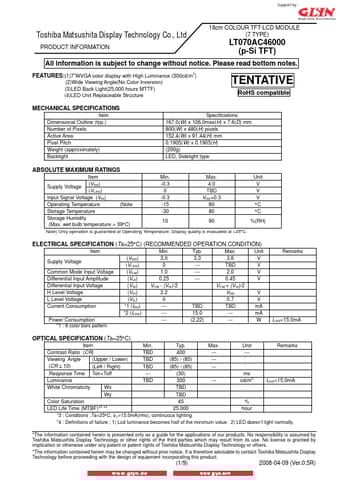

Datasheet preview – LT070AC46000

Datasheet Details

Part number LT070AC46000
Manufacturer Toshiba
File Size 200.63 KB
Description Colour TFT LCD Module
Datasheet download datasheet LT070AC46000 Datasheet
Additional preview pages of the LT070AC46000 datasheet.

📁 Similar Datasheet

  • LT070W02-TME1 - TFT LCD (LG)
  • LT070W02-TMJ2 - TFT LCD (LG)
  • LT012S8 - Picoamp Input Current /Microvolt Offset /Low Noise Op Amp (Linear Technology)
  • LT015PD - Photodiode (ETC)
  • LT022MC - Low noise S/N:60db(according to measurement method Fig> 29-2) (Sharp)
  • LT022MD - Low noise S/N:60db(according to measurement method Fig> 29-2) (Sharp)
  • LT022MF - Low noise S/N:60db(according to measurement method Fig> 29-2) (Sharp)
  • LT023MC - PHOTODIODE (Sharp)
  • LT023MD - PHOTODIODE (Sharp)
  • LT023MF - PHOTODIODE (Sharp)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text
Support by : Toshiba Matsushita Display Technology Co., Ltd PRODUCT INFORMATION 18cm COLOUR TFT-LCD MODULE (7 TYPE) LT070AC46000 (p-Si TFT) All information is subject to change without notice. Please read bottom notes. FEATURES:(1)7”WVGA color display with High Luminance (300cd/m2) (2)Wide Viewing Angle(No Color Inversion) (3)LED Back Light(25,000 hours MTTF) (4)LED Unit Replaceable Structure TENTATIVE RoHS compatible MECHANICAL SPECIFICATIONS Item Dimensional Outline (typ.) Number of Pixels Active Area Pixel Pitch Weight (approximately) Backlight Specifications 167.0(W) x 106.0max(H) x 7.6(D) mm 800(W) x 480(H) pixels 152.4(W) x 91.44(H) mm 0.1905(W) x 0.
