Toshiba Electronic Components Datasheet

C4322 Datasheet

2SC4322

No Preview Available !

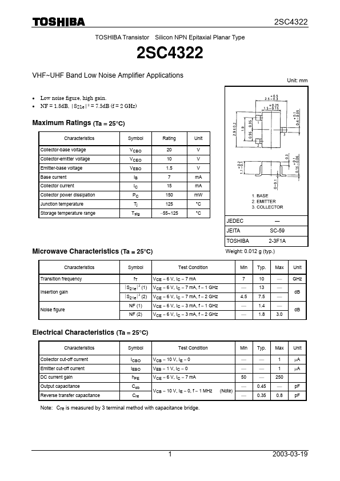

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type
2SC4322
2SC4322
VHF~UHF Band Low Noise Amplifier Applications
Unit: mm
· Low noise figure, high gain.
· NF = 1.8dB, |S21e|2 = 7.5dB (f = 2 GHz)
Maximum Ratings (Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Base current
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
VCBO
VCEO
VEBO
IB
IC
PC
Tj
Tstg
Rating
20
10
1.5
7
15
150
125
-55~125
Unit
V
V
V
mA
mA
mW
°C
°C
Microwave Characteristics (Ta = 25°C)
JEDEC
JEITA
SC-59
TOSHIBA
2-3F1A
Weight: 0.012 g (typ.)
Characteristics
Transition frequency
Insertion gain
Noise figure
Symbol
Test Condition
fT
ïS21eï2 (1)
ïS21eï2 (2)
NF (1)
NF (2)
VCE = 6 V, IC = 7 mA
VCE = 6 V, IC = 7 mA, f = 1 GHz
VCE = 6 V, IC = 7 mA, f = 2 GHz
VCE = 6 V, IC = 3 mA, f = 1 GHz
VCE = 6 V, IC = 3 mA, f = 2 GHz
Min Typ. Max Unit
7 10 ¾ GHz
¾ 13 ¾
dB
4.5 7.5 ¾
¾ 1.4 ¾
dB
¾ 1.8 3.0
Electrical Characteristics (Ta = 25°C)
Characteristics
Symbol
Test Condition
Min Typ. Max Unit
Collector cut-off current
Emitter cut-off current
DC current gain
Output capacitance
Reverse transfer capacitance
ICBO
IEBO
hFE
Cob
Cre
VCB = 10 V, IE = 0
VEB = 1 V, IC = 0
VCE = 6 V, IC = 7 mA
VCB = 10 V, IE = 0, f = 1 MHz (Note)
¾
¾
50
¾
¾
¾
¾
¾
0.45
0.35
1
1
250
¾
0.8
mA
mA
pF
pF
Note: Cre is measured by 3 terminal method with capacitance bridge.
1 2003-03-19


Toshiba Electronic Components Datasheet

C4322 Datasheet

2SC4322

No Preview Available !

Marking
2SC4322
2 2003-03-19
