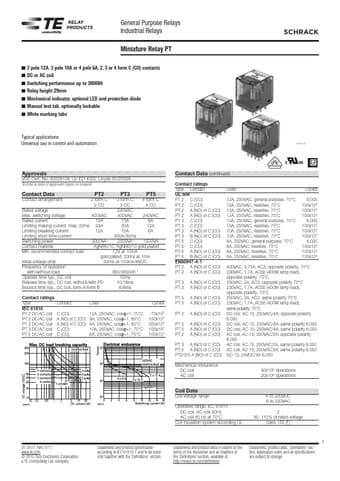

General Purpose Relays

No Preview Available !

General Purpose Relays
Industrial Relays
Miniature Relay PT
n 2 pole 12A, 3 pole 10A or 4 pole 6A, 2, 3 or 4 form C (CO) contacts
n DC or AC coil
n Switching performance up to 3000VA
n Relay height 29mm
n Mechanical indicator, optional LED and protection diode
n Manual test tab, optionally lockable
n White marking tabs
SCHRACK
Typical applications
Universal use in control and automation
F0191-B
Approvals
VDE Cert. No. 40009108, UL E214025, Lloyds 00/20059
Technical data of approved types on request
Contact Data
PT2
PT3
PT5
Contact arrangement
2 form C 3 form C 4 form C
2 CO
3 CO
4 CO
Rated voltage
240VAC
Max. switching voltage
400VAC 400VAC 240VAC
Rated current
12A
10A
6A
Limiting making current, max. 20ms 24A
20A
12A
Limiting breaking current
12A
10A
6A
Limiting short-time current
300A/30ms
Switching power
3000VA 2500VA 1500VA
Contact material AgNi90/10, AgNi90/10 gold plated
Min. recommended contact load
12V at 10mA
gold plated: 20mV at 1mA
Initial voltage drop 30mV at 100mA/6VDC
Frequency of operation
with/without load
360/36000h-1
Operate time typ., DC coil
15ms
Release time typ., DC coil, without/with PD
10/18ms
Bounce time typ., DC coil, form A/form B
6/8ms
Contact ratings
Type
Contact
Load
Cycles
IEC 61810
PT 2 DC/AC coil C (CO)
12A, 250VAC, cosφ=1, 70°C 70x103
PT 2 DC/AC coil A (NO) of C (CO) 9A, 250VAC, cosφ=1, 80°C 150x103
PT 2 DC/AC coil A (NO) of C (CO) 4A, 250VAC, cosφ=1, 80°C 300x103
PT 3 DC/AC coil C (CO)
10A, 250VAC, cosφ=1, 70°C 100x103
PT 5 DC/AC coil C (CO)
6A, 250VAC, cosφ=1, 70°C 100x103
Z
Contact Data (continued)
Contact ratings
Type Contact
Load
Cycles
UL 508
PT 2 C (CO)
12A, 250VAC, general purpose, 70°C 6.000
PT 2 C (CO)
12A, 250VAC, resistive, 70°C
100x103
PT 2 A (NO) of C (CO) 12A, 250VAC, resistive, 70°C
100x103
PT 2 A (NO) of C (CO) 12A, 250VAC, resistive, 70°C
100x103
PT 3 C (CO)
10A, 250VAC, general purpose, 70°C 6.000
PT 3 C (CO)
10A, 250VAC, resistive, 70°C
100x103
PT 3 A (NO) of C (CO) 10A, 250VAC, resistive, 70°C
100x103
PT 3 B (NC) of C (CO) 10A, 250VAC, resistive, 70°C
100x103
PT 5 C (CO)
6A, 250VAC, general purpose, 70°C
6.000
PT 5 C (CO)
6A, 250VAC, resistive, 70°C
100x103
PT 5 A (NO) of C (CO) 6A, 250VAC, resistive, 70°C
100x103
PT 5 B (NC) of C (CO) 6A, 250VAC, resistive, 70°C
100x103
EN60947-4-1
PT 2 A (NO) of C (CO) 400VAC, 3.75A, AC3, opposite polarity, 70°C
PT 2 A (NO) of C (CO) 230VAC, 1.7A, AC5b (400W lamp load),
opposite polarity, 70°C
PT 3 A (NO) of C (CO) 250VAC, 2A, AC3, opposite polarity 70°C
PT 3 A (NO) of C (CO) 230VAC, 1.7A, AC5b (400W lamp load),
opposite polarity, 70°C
PT 5 A (NO) of C (CO) 250VAC, 3A, AC3, same polarity 70°C
PT 5 A (NO) of C (CO) 230VAC, 1.7A, AC5b (400W lamp load),
same polarity, 70°C
PT 2 A (NO) of C (CO) DC coil, AC-15, 250VAC/4A, opposite polarity
6.050
PT 3 A (NO) of C (CO) DC coil, AC-15, 250VAC/4A, same polarity 6.050
PT 5 A (NO) of C (CO) DC coil, AC-15, 250VAC/4A, same polarity 6.050
PT 2 A (NO) of C (CO) AC coil, AC-15, 250VAC/2A, opposite polarity
6.050
PT 3 A (NO) of C (CO) AC coil, AC-15, 250VAC/2A, same polarity 6.050
PT 5 A (NO) of C (CO) AC coil, AC-15, 250VAC/2A, same polarity 6.050
PT2/3/5 A (NO) of C (CO) DC-13, 24VDC/4A 6.050
Mechanical endurance
DC coil
30x106 operations
AC coil
20x106 operations
Coil Data
Coil voltage range
Operative range, IEC 61810
DC coil, AC-coil 50Hz
AC coil 60 Hz at 70°C
Coil insulation system according UL
6 to 220VDC
6 to 230VAC
2
90..110% of rated voltage
class 155 (F)
01-2017, Rev. 0117
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1




TE

PT371024 Datasheet Preview

PT371024 Datasheet

General Purpose Relays

No Preview Available !

General Purpose Relays
Industrial Relays
Miniature Relay PT (Continued)
SCHRACK
Coil Data (continued)
Coil versions, DC coil, standard
Coil
Rated
Operate Release
Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10%1)2) mW
006 6 4.5 0.6 48 750
012 12 9.0 1.2 192 750
024 24 18.0 2.4 777 741
048 48 36.0 4.8 3072 750
060 60 45.0 6 48451) 743
110 110 82.5 11 161332) 750
220
220
165.0
22
645332) 750
Coil versions, DC coil with bipolar LED or LED and protection diode
Coil code
Rated Operate Release Coil Rated coil
bipol. LED+ voltage voltage voltage resistance +LED pwr.
LED PD3) VDC VDC VDC Ω±10%1)2) mW
L06 LA6
6
4.5 0.6 48 750+3.5
L12 LB2
12
9.0
1.2
192
750+10
L24 LC4
24
18.0
2.4
777
741+18
L48 LE8
48
36.0
4.8 3072 750+38
L60 LG0
60
45.0
6.0 48451) 743+56
M10 MB0 110 82.5 11.0 161332) 750+96.5
N20 NC0 220 165.0
22.0 645332) 750+202.5
1) Coil resistance ±12%, 2) Coil resistance ±15%,
3) Protection diode PD; standard polarity: +A1/-A2
All figures are given for coil without pre-energization, at ambient temperature +23°C
Coil versions, AC coil, 50/60Hz
Coil code
Rated Operate Release Coil Rated coil
STD LED voltage voltage voltage resistance power
50/60Hz 50/60Hz 50/60Hz
VAC
VAC
VAC Ω±10%1)2) VA
506 R06
6
4.8/5.4
1.8
11 1.0/0.85
512 R12
12
9.6/10.8 3.6
48 1.0/0.85
524 R24 24 19.2/21.6 7.2
192 1.0/0.79
548 R48 48 38.4/43.2 14.4
777 1.0/0.87
560 R60 60 48.0/54.0 18.0 1306 1.0/0.87
615 S15 115 92.0/103.5 34.5 48451) 1.0/0.86
730 T30
230
184/207 69.0 194652) 1.0/0.90
1) Coil resistance ±12%, 2) Coil resistance ±15%
All figures are given for coil without pre-energization, at ambient temperature +23°C
Insulation Data
PT2
PT3
PT5
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Initial surge withstand voltage
1200Vrms 1200Vrms 1200Vrms
2500Vrms 2500Vrms 2500Vrms
2500Vrms 2500Vrms 2000Vrms
between contact and coil
5000V (1.2/50µs)
Clearance/creepage
between contact and coil
≥3/4mm
Material group of insulation parts
IIIa
Pollution degree
2
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
-40 to +70°C
Cold storage, IEC 60068-2-1
-40°C/16h
Dry heat, IEC 60068-2-2
70°C/16h
Category of environmental protection
IEC 61810
RTII - flux proof
Vibration resistance (functional),
form A (NO)/form B (NC)
7/4g
Shock resistance (functional),
form A (NO)/form B (NC)
20/5g
Terminal type
PCB-THT, plug-in
quick-connect
Cover retention, pull/push force
100/100N
Weight 30g
Mounting distance, for mounting on PCB
5mm
Resistance to soldering heat THT
IEC 60068-2-20
270°C/10s
Packaging unit
10/250pcs.
Accessories
For details see datasheet
Accessories Miniature Relay PT
Note: indicated contact ratings and electrical endurance data for direct
wiring of relays (according IEC 61810-1); for relays mounted on sockets
deratings may apply.
Product Sets
Complete sets consisting of a relay
mounted on a socket see
Package PT
2
01-2017, Rev. 0117
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
