W08G - 1.5A Glass Passivated Bridge Rectifier

TAITRON

Key Features

Glass passivated chip junction.
High case dielectric strength.
Typical IR less than 0.1µA.
High surge current capability WOG.
Ideal for printed circuit boards.
High temperature soldering guaranteed: 260˚C/10 seconds 0.375” (9.5mm) lead length at 5lbs. (2.3kg) tension.
This series is UL recognized under component index, File number E194718.
RoHS compliant Mechanical Data Case: Terminals: Polarity: Weight: WOG, Epoxy meets UL 94V-0 flammability ra.

W08G 1.5a glass passivated bridge rectifier by TAITRON - Datasheet Preview

Datasheet Details

Part number	W08G
Manufacturer	TAITRON
File Size	237.43 KB
Description	1.5A Glass Passivated Bridge Rectifier
Datasheet	W08G Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
W08G	1.5A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER	WON-TOP
W08G	GLASS PASSIVATED BRIDGE RECTIFIERS	LITE-ON
W08G	Single Phase 1.5 AMPS. Glass Passivated Bridge Rectifiers	Taiwan Semiconductor
W08G	1.5 Ampere Glass Passivated Bridge Rectifiers	Fairchild Semiconductor
W08G	1.5A GLASS PASSIVATED BRIDGE RECTIFIER	Diodes Incorporated

Other Datasheets by TAITRON

Part Number	Description
W08M	1.5A Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

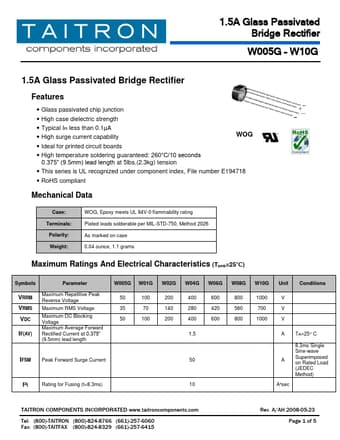

1.5A Glass Passivated Bridge Rectifier W005G – W10G 1.5A Glass Passivated Bridge Rectifier Features  Glass passivated chip junction  High case dielectric strength  Typical IR less than 0.1µA  High surge current capability WOG  Ideal for printed circuit boards  High temperature soldering guaranteed: 260˚C/10 seconds 0.375” (9.5mm) lead length at 5lbs.(2.3kg) tension  This series is UL recognized under component index, File number E194718  RoHS compliant Mechanical Data Case: Terminals: Polarity: Weight: WOG, Epoxy meets UL 94V-0 flammability rating Plated leads solderable per MIL-STD-750, Method 2026 As marked on case 0.04 ounce, 1.
