BZT52B68 Datasheet, TAITRON

BZT52B68 diodes equivalent, 410mw two terminals smd zener diodes.

BZT52B68 Avg. rating / M : 1.0 rating-12

datasheet Download (Size : 293.09KB)

BZT52B68 Datasheet
BZT52B68 Avg. rating / M : 1.0 rating-12

datasheet Download (Size : 293.09KB)

BZT52B68 Datasheet

Features and benefits


* Planar Die Construction
* 410mW Power Dissipation
* Zener Voltage 2.4v to 75v
* Zener Voltage Tolerance: ±2%
* Ideally Suited for Automated Assembly.

Description

Value Unit Conditions PD Power Dissipation (Note 1) 410 mW VF Forward Voltage Drop 0.9 RθJA RθJL Thermal Resistance, Junction to Ambient Air (Note 2) Thermal Resistance, Junction to Lead 430 320 TJ, TSTG Operating Junction and Storage Tem.

Image gallery

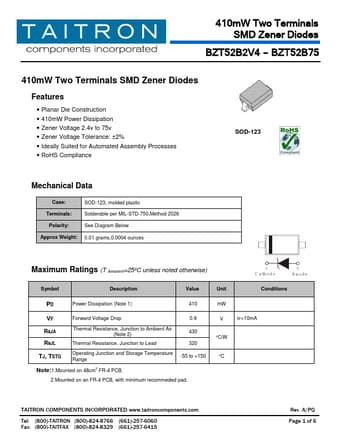

BZT52B68 Page 1 BZT52B68 Page 2 BZT52B68 Page 3
