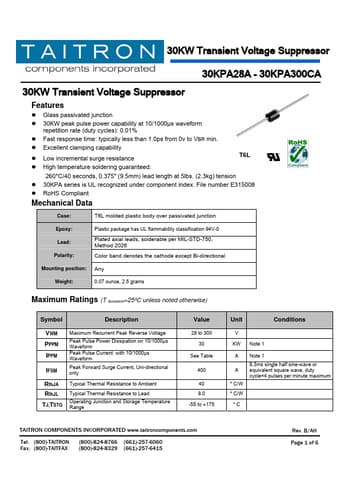

30KW Transient Voltage Suppressor 30KPA28A - 30KPA300CA 30KW Transient Voltage Suppressor Features z Glass passivated junction z 30KW peak pulse power capability at 10/1000μs waveform repetition rate (duty cycles): 0.01% z Fast response time: typically less than 1.0ps from 0v to VBR min. z Excellent clamping capability z Low incremental surge resistance T6L z High temperature soldering guaranteed: 260°C/40 seconds, 0.375" (9.5mm) lead length at 5lbs. (2.3kg) tension z 30KPA series is UL recognized under ponent index. File number E315008 z RoHS pliant Mechanical Data Case: T6L molded plastic body over passivated junction Epoxy: Lead: Polarity: Plastic package has UL...
