MUR240 - SUPER FAST RECTIFIER DIODES

Download the MUR240 datasheet PDF. This datasheet also covers the MUR205 variant, as both devices belong to the same super fast rectifier diodes family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case : DO-15, Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Color band denotes cathode end ! Mounting position : Any ! Weight : 0.465 gram ABA D DO-15 Dim Min Max A 25.40.
  • B 5.50 7.62 C 0.686 0.889 D 2.60 3.60 All Dimensions in mm C Maximum.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MUR205-Sunmate.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MUR240
Manufacturer Sunmate
File Size 1.07 MB
Description SUPER FAST RECTIFIER DIODES
Datasheet download datasheet MUR240 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MUR240 Ultrafast Recovery Rectifiers GOOD-ARK
MUR240 2.0A Sintered Glass Passivated Ultra Fast Recovery Rectifier TAITRON
MUR240 SUPER FAST RECTIFIER MIC
MUR240 SWITCHMODE Power Rectifier ON Semiconductor
MUR240 ULTRAFAST RECTIFIER Rectron

Other Datasheets by Sunmate

Part Number Description
MUR205 SUPER FAST RECTIFIER DIODES
MUR210 SUPER FAST RECTIFIER DIODES
MUR215 SUPER FAST RECTIFIER DIODES
MUR220 SUPER FAST RECTIFIER DIODES
MUR230 SUPER FAST RECTIFIER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

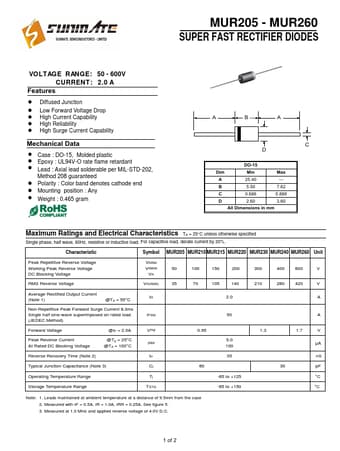

MUR205 - MUR260 SUPER FAST RECTIFIER DIODES VOLTAGE RANGE: 50 - 600V CURRENT: 2.0 A Features ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case : DO-15, Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Color band denotes cathode end ! Mounting position : Any ! Weight : 0.465 gram ABA D DO-15 Dim Min Max A 25.40 — B 5.50 7.62 C 0.686 0.889 D 2.60 3.60 All Dimensions in mm C Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
