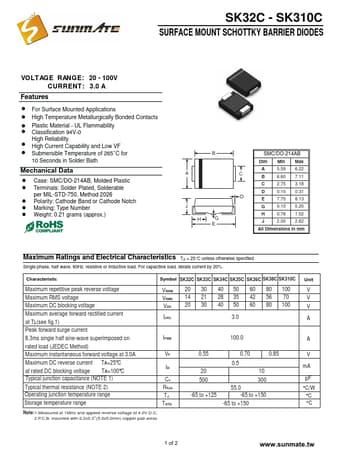

SK32C - SK310C
SURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE: 20 - 100V CURRENT: 3.0 A
Features
! For Surface Mounted Applications ! High Temperature Metallurgically Bonded Contacts
! Plastic Material - UL Flammability ! Classification 94V-0
High Reliability ! High Current Capability and Low VF ! S u bm e rsible Tem peratu re of26 5 °C for B SMC/DO-214AB
10 Seconds in Solder Bath
Dim Min Max
Mechanical Data
! Case: SMC/DO-214AB, Molded Plastic ! Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx.)
A
J H
G E
A 5.59 6.22 C B 6.60 7.11
C 2.
