CXM3582UR - SP10T Antenna Switch Module 6TRx/2Tx/2Rx

General Description

The CXM3582UR is a SP10T antenna switch module for GSM/UMTS/CDMA/LTE multi-mode handset.

The CXM3582UR has a built-in dual low pass filter and a +1.8 V CMOS compatible decoder.

The Sony GaAs junction gate pHEMT (JPHEMT) MMIC process is used for low insertion loss and high linearity.

Key Features

  • Low insertion loss: 0.45 dB (Typ. ) TRx (Cellular band) 0.60 dB (Typ. ) TRx (IMT Tx band).
  • High linearity: IIP3 = 68 dBm.
  • Battery direct operation: VDD = 2.5 V to 5.0 V.
  • No DC blocking capacitors except sourcing DC bias.
  • Small package size: 26-pin UQFN (2.6 mm x 3.4 mm x 0.6 mm Max. ).
  • Lead-free and RoHS compliant Structure GaAs junction gate pHEMT (JPHEMT) MMIC switch, CMOS decoder Absolute Maximum Ratings.
  • Bias voltage.
  • Control voltage VDD VCTL 6 V (Ta =.

📥 Download Datasheet

Datasheet Details

Part number CXM3582UR
Manufacturer Sony Electronics
File Size 965.84 KB
Description SP10T Antenna Switch Module 6TRx/2Tx/2Rx
Datasheet download datasheet CXM3582UR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CXM3512EQ SP9T GSM/UMTS Dual Mode Antenna Switch Sony Corporation
CXM3513ER High Power DP3T Switch Sony
CXM3517BER SP7T Antenna Switch Module Sony
CXM3519ER SP9T/10T Antenna Switch Module Sony
CXM3569XR SP4T Antenna Switch Sony

Other Datasheets by Sony Electronics

Part Number Description
CXM3000GA Wireless Gsm900/1800/1900 Dual/triple Band Rx/tx Gsm/gprs Transceiver Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

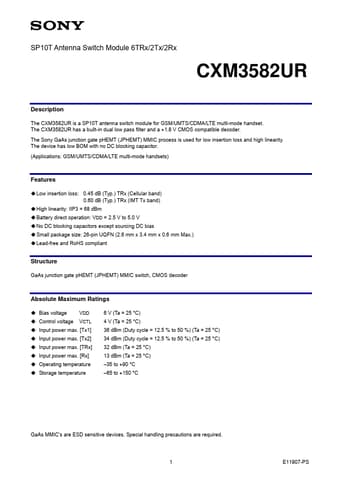

www.DataSheet.co.kr SP10T Antenna Switch Module 6TRx/2Tx/2Rx CXM3582UR Description The CXM3582UR is a SP10T antenna switch module for GSM/UMTS/CDMA/LTE multi-mode handset. The CXM3582UR has a built-in dual low pass filter and a +1.8 V CMOS compatible decoder. The Sony GaAs junction gate pHEMT (JPHEMT) MMIC process is used for low insertion loss and high linearity. The device has low BOM with no DC blocking capacitor. (Applications: GSM/UMTS/CDMA/LTE multi-mode handsets) Features ◆ Low insertion loss: 0.45 dB (Typ.) TRx (Cellular band) 0.60 dB (Typ.) TRx (IMT Tx band) ◆ High linearity: IIP3 = 68 dBm ◆ Battery direct operation: VDD = 2.5 V to 5.0 V ◆ No DC blocking capacitors except sourcing DC bias ◆ Small package size: 26-pin UQFN (2.6 mm x 3.4 mm x 0.6 mm Max.
