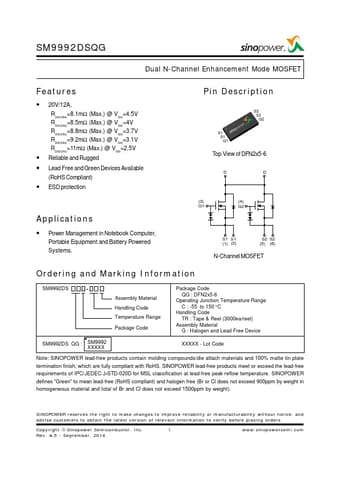

SM9992DSQG datasheet, mosfet equivalent, Sinopower

Avg. rating / M : 1.0 rating-1

datasheet Download (Size : 174.41KB)

Features and benefits

* 20V/12A, RDS(ON)=8.1mΩ (Max.) @ VGS=4.5V RDS(ON)=8.5mΩ (Max.) @ V =4V GS RDS(ON)=8.8mΩ (Max.) @ VGS=3.7V RDS(ON)=9.2mΩ (Max.) @ VGS=3.1V RDS(ON)=11mΩ (Max.

Application

* Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems. Pin Description S2 S2 G2 S.

Description

S2 S2 G2 S1 S1 G1 Top View of DFN2x5-6 DD (3) (4) G1 G2 S1 S1 (1) (2) S2 S2 (5) (6) N-Channel MOSFET Ordering and Marking Information SM9992DS Assembly Material Handling Code Temperature Range Package Code Package Code QG : DFN2x5-6 Operating .
