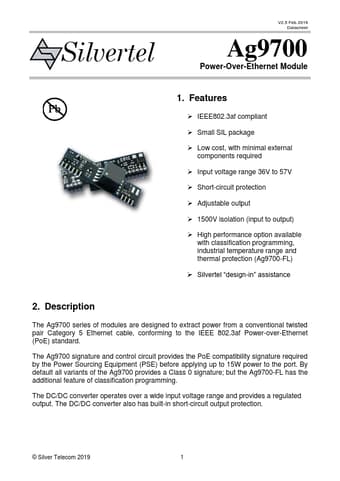

Silvertel V2.5 Feb 2019 Datasheet Power-Over-Ethernet Module 1. Features Pb - IEEE802.3af pliant - Small SIL package - Low cost, with minimal external ponents required - Input voltage range 36V to 57V - Short-circuit protection - Adjustable output - 1500V isolation (input to output) - High performance option available with classification programming, industrial temperature range and thermal protection (Ag9700-FL) - Silvertel “design-in” assistance 2. Description The Ag9700 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (Po E) standard. The Ag9700 signature and control circuit provides the Po E patibility signature required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. By default all variants of the Ag9700 provides a Class 0 signature; but the Ag9700-FL has the additional feature of classification...
