HYM328020S 8M x 32-Bit Dynamic RAM Module

DRAM Module (access time 50 ns) DRAM Module (access time 60 ns) DRAM Module (access time 50 ns) DRAM Module (access time 60 ns) Semiconductor Group 2 HYM 328020S/GS-50/-60 8M × 32-Bit Pin Configuration Pin Names VSS DQ16 DQ17 DQ18 DQ19 N.C. A1 A3 A5 A10 DQ20 DQ21 DQ22 DQ23 N.C A8 RAS3 N.C. N.C..

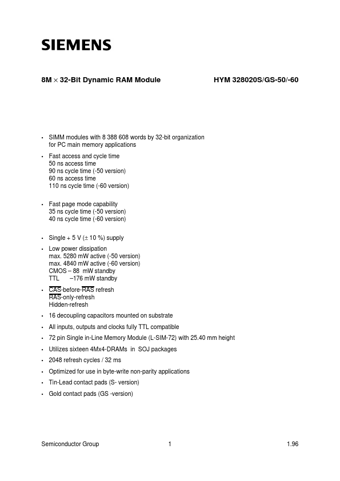

8M × 32-Bit Dynamic RAM Module HYM 328020S/GS-50/-60 SIMM modules with 8 388 608 words by 32-bit organization for PC main memory applications Fast access and cycle time 50 ns access time 90 ns cycle time (-50 version) 60 ns access time 110 ns cycle time (-60 version) Fast page mode capability 35 ns cycle time (-50 version) 40 ns cycle time (-60 version) Single + 5 V (± 10 %) supply Low power dissipation max. 5280 mW active (-50 version) max. 4840 mW active (-60 version) CMOS

HYM328020S Features

* r measuring timing of input signal

HYM328020S Datasheet (53.12 KB)

HYM328020S Datasheet Preview — Preview of HYM328020S PDF

Datasheet Details

Part number:

HYM328020S

Manufacturer:

Siemens

File Size:

53.12 KB

Description:

8m x 32-bit dynamic ram module.
