SMC2301SN - Single P-Channel MOSFET

Description

SMC2301SN is the P-Channel MOSFET , this advanced trench technology to provide excellent RDS(ON).

This devices are well suited for high efficiency fast switching applications, low in-line power loss are needed in small outline surface mount package.

PART NUMBER INFORMATION SMC 2301 SN - TR G a

Features

  • VDS=-20V, ID=-3.5A RDS(ON)=60mΩ(Typ. )@VGS=-4.5V RDS(ON)=80mΩ(Typ. )@VGS=-2.5V RDS(ON)=110mΩ(Typ. )@VGS=-1.8V.
  • Fast switch.
  • 1.8V Low gate drive.

📥 Download Datasheet

Datasheet Details

Part number SMC2301SN
Manufacturer Semtron
File Size 291.56 KB
Description Single P-Channel MOSFET
Datasheet download datasheet SMC2301SN Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SMC20 SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS Lite-On
SMC20 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS MIC
SMC200 SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS Lite-On
SMC200A SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS Lite-On
SMC200C SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS Lite-On

Other Datasheets by Semtron

Part Number Description
SMC2300SN Single N-Channel MOSFET
SMC2302S Single N-Channel MOSFET
SMC2302SN Single N-Channel MOSFET
SMC2305S Single P-Channel MOSFET
SMC2327SN Single P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

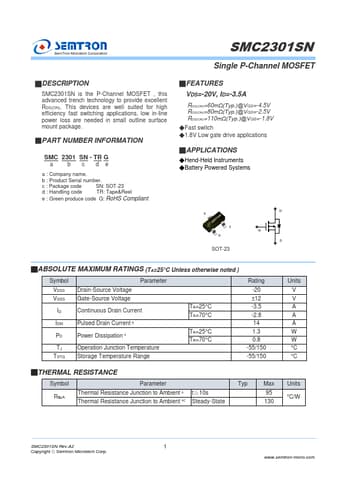

SMC2301SN Single P-Channel MOSFET ■DESCRIPTION SMC2301SN is the P-Channel MOSFET , this advanced trench technology to provide excellent RDS(ON). This devices are well suited for high efficiency fast switching applications, low in-line power loss are needed in small outline surface mount package. ■PART NUMBER INFORMATION SMC 2301 SN - TR G a b c de a : Company name. b : Product Serial number. c : Package code SN: SOT-23 d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant ■FEATURES VDS=-20V, ID=-3.5A RDS(ON)=60mΩ(Typ.)@VGS=-4.5V RDS(ON)=80mΩ(Typ.)@VGS=-2.5V RDS(ON)=110mΩ(Typ.)@VGS=-1.8V ◆Fast switch ◆1.
