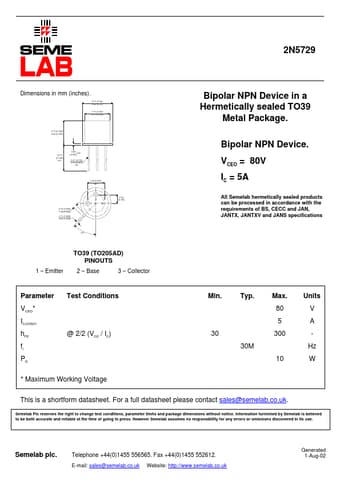

2N5729 Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) 6.10 (0.240) 6.60 (0.260) 12.70 (0.500) min. (00.0.8395)max. 0.41 (0.016) 0.53 (0.021)...
View more extracted text
0 (0.260) 12.70 (0.500) min. (00.0.8395)max. 0.41 (0.016) 0.53 (0.021) dia. 5.08 (0.200) typ. 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 2 13 45° 2.54 (0.100) 1 – Emitter TO39 (TO205AD) PINOUTS 2 – Base 3 – Collector Bipolar NPN Device in a Hermetically sealed TO39 Metal Package. Bipolar NPN Device. VCEO = 80V IC = 5A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications Parameter VCEO* IC(CONT) hFE ft PD Test Conditions @ 2/2 (VCE / IC) * Maximum Working Voltage Min. 30 Typ. 30M Max. 80 5 300 10 Units V A Hz W This
