CTXS-6606S Datasheet, Sanken

CTXS-6606S diode equivalent, fast recovery diode.

CTXS-6606S Avg. rating / M : 1.0 rating-12

datasheet Download (Size : 214.43KB)

CTXS-6606S Datasheet

Features and benefits


* Bare Lead Frame: Pb-free (RoHS Compliant)
* VRM---------------------------------------------------- 600 V
* IF(AV)------------------------------------------.

Application


* PFC Circuit
* Inverter Circuit Package TO247-3L (1) (4) (1) (2) (3) (2)(4) (3) (1) Anode (2) Cathode (3) .

Description

The CTXS-6606S is a fast recovery diode of 600 V, 60 A. The maximum trr of 35 ns is realized by optimizing a life-time control. The low thermal resistance package achieves high performance in terms of heat dissipation. Features
* Bare Lead Frame:.

Image gallery

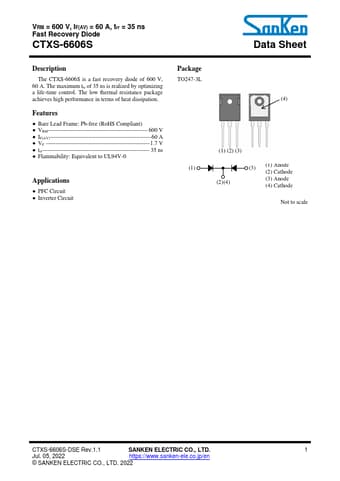

CTXS-6606S Page 1 CTXS-6606S Page 2 CTXS-6606S Page 3
