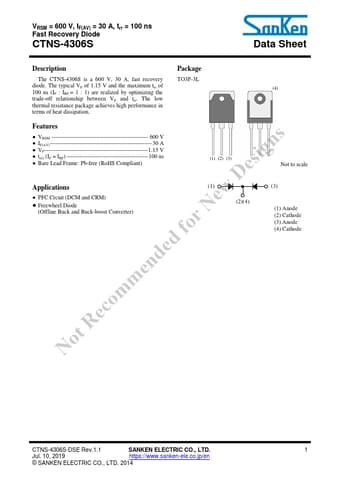

CTNS-4306S diode equivalent, fast recovery and high power diode.
* VRSM ---------------------------------------------------- 600 V
* IF(AV)------------------------------------------------------- 30 A
* VF-------------------.
w
* PFC Crcuit (DCM and CRM) e
* Freewheel Diode Not Recommended for N (Offline Buck and Buck-boost Converter)
.
Package
The CTNS-4306S is a 600 V, 30 A, fast recovery TO3P-3L
diode. The typical VF of 1.15 V and the maximum trr of
(4)
100 ns (IF : IRP = 1 : 1) are realized by optimizing the
trade-off relationship between VF and trr. The low thermal resist.
