LTA230AN03-W

The LTA230AN03-W is TFT LCD designed by Samsung.

Product Overview

Samsung

Datasheet Details

Part number	LTA230AN03-W
Manufacturer	Samsung
File Size	1.18 MB
Description	TFT LCD
Datasheet	LTA230AN03-W-Samsung.pdf

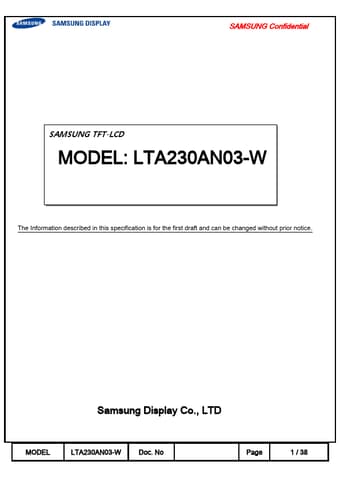

Additional preview pages of the LTA230AN03-W datasheet.

Product details

Description

-------------------(4) 1. Absolute Maximum Ratings -------------------(6) 1.1 Environmental Absolute Ratings 1.2 Electrical Absolute Ratings 1.3 The Others Absolute Ratings 2. Optical Characteristics -------------------(7) 3. Electrical Characteristics - - - - - - - - - - - - - - - - - - - ( 13 ) 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 LED Module Connector 4. Block Diagram - - - - - - - - - - - - - - - - - - - ( 16 ) 4.1 TFT LCD Module 4.2 Back Light 5. Input Terminal Pin Ass

Features

High contrast ratio & aperture ratio with the wide color gamut.
PVA(Patterned Vertical Align) mode.
Wide viewing angle (±178°).
High speed response (with DCC circuit).
Wide XGA (1,366 x 768 pixels, 16:9).
Edge LED BLU Unit.
DE (Data enable) mode.
The interface (1 pixel/clock) of LVDS serial interface Items Specification Module Size Weight Pixel Pitch 534.0(H) x 311.8(V) 11(D) 1700 0.372(H) x 0.124(W) Active Display Area 508.152(H) x 285.696(V) Surf.
