STM4820 - N-Channel Enhancement Mode Field Effect Transistor

Product Overview

SamHop Microelectronics

📥 Download Datasheet

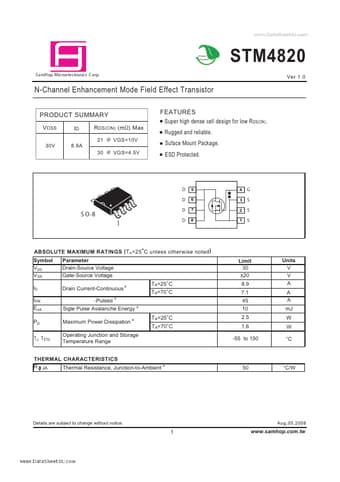

STM4820 N-Channel Enhancement Mode Field Effect Transistor by SamHop Microelectronics - Datasheet Preview — Datasheet preview – STM4820

Datasheet Details

Part number	STM4820
Manufacturer	SamHop Microelectronics
File Size	202.68 KB
Description	N-Channel Enhancement Mode Field Effect Transistor
Datasheet	STM4820 Datasheet
Additional preview pages of the STM4820 datasheet.

Product details

Features

Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. ESD Protected. ID 8.9A R DS(ON) (m Ω) Max 21 @ VGS=10V 30 @ VGS=4.5V D D 5 6 7 8 4 3 2 1 G S S S S O-8 1 D D.
