TN4015H-8I - 40A 800V high temperature SCR thyristors

Description

Thanks to its junction temperature Tj up to 150 °C, the TN4015H-8I offers high thermal performance operation up to 40 A RMS in an insulated TO-220AB package.

Features

  • High junction temperature: Tj = 150 °C.
  • 800 V VDRM / VRRM.
  • 900 V VDSM / VRSM.
  • Low IGT: 15 mA.
  • High static immunity dV/dt = 1000 V/μs at 150 °C.
  • High turn-on rise dI/dt at 200 A/μs.
  • Halogen-free molding, lead-free plating.
  • ECOPACK2 compliant.
  • Insulated package TO-220AB:.
  • Insulated voltage: 2500 VRMS.
  • Complies with UL 1554 (file ref. 81734).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TN400A Current Transducers Topstek
TN4033A PNP General Purpose Amplifier Fairchild Semiconductor
TN4035-600G 40A SCRs ST Microelectronics
TN40A Current Transducers Topstek
TN41A THRISTOR TRIGGER RELAXATION OSCILLATOR PULSER AND TIMER APPLICATIONS Toshiba Semiconductor

Other Datasheets by STMicroelectronics

Part Number Description
TN4015H-8T 40A 800V high temperature SCR thyristor
TN4015H-6G High temperature 40A SCRs
TN4015H-6I High temperature 40A SCRs
TN4015H-6T High temperature 40A SCRs
TN4035HA-8GY automotive grade SCR thyristor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

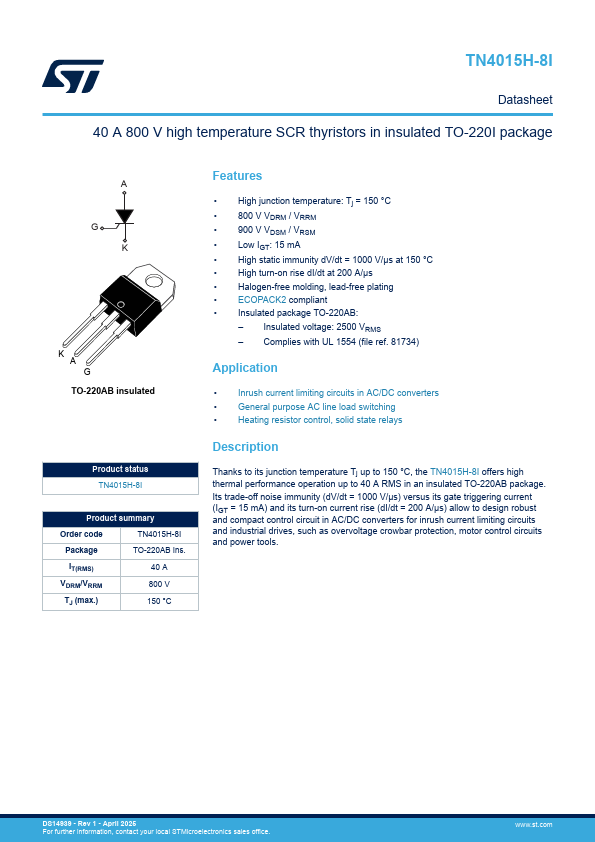

TN4015H-8I Datasheet 40 A 800 V high temperature SCR thyristors in insulated TO-220I package A G K K A G TO-220AB insulated Product status TN4015H-8I Product summary Order code TN4015H-8I Package TO-220AB Ins. IT(RMS) 40 A VDRM/VRRM 800 V TJ (max.) 150 °C Features • High junction temperature: Tj = 150 °C • 800 V VDRM / VRRM • 900 V VDSM / VRSM • Low IGT: 15 mA • High static immunity dV/dt = 1000 V/μs at 150 °C • High turn-on rise dI/dt at 200 A/μs • Halogen-free molding, lead-free plating • ECOPACK2 compliant • Insulated package TO-220AB: – Insulated voltage: 2500 VRMS – Complies with UL 1554 (file ref.
