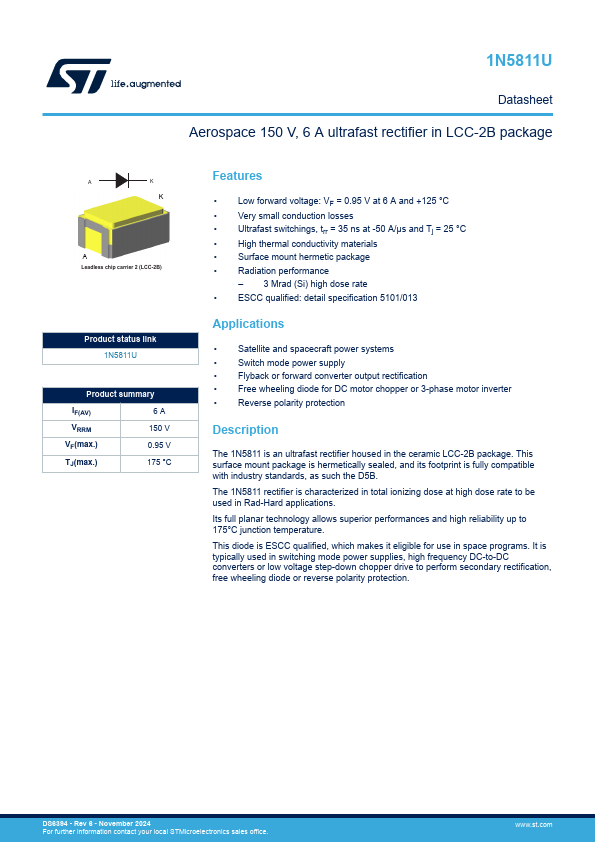

1N5811U Datasheet Aerospace 150V 6A ultrafast rectifier

Manufacturer: STMicroelectronics

📥 Download Datasheet

General Description

The 1N5811 is an ultrafast rectifier housed in the ceramic LCC-2B package.

This surface mount package is hermetically sealed, and its footprint is fully compatible with industry standards, as such the D5B.

The 1N5811 rectifier is characterized in total ionizing dose at high dose rate to be used in Rad-Hard applications.

Overview

1N5811U Datasheet Aerospace 150 V, 6 A ultrafast rectifier in LCC-2B package A K K A Leadless chip carrier 2 (LCC-2B) Product status link 1N5811U Product summary IF(AV) VRRM 6A 150 V VF(max.) TJ(max.) 0.

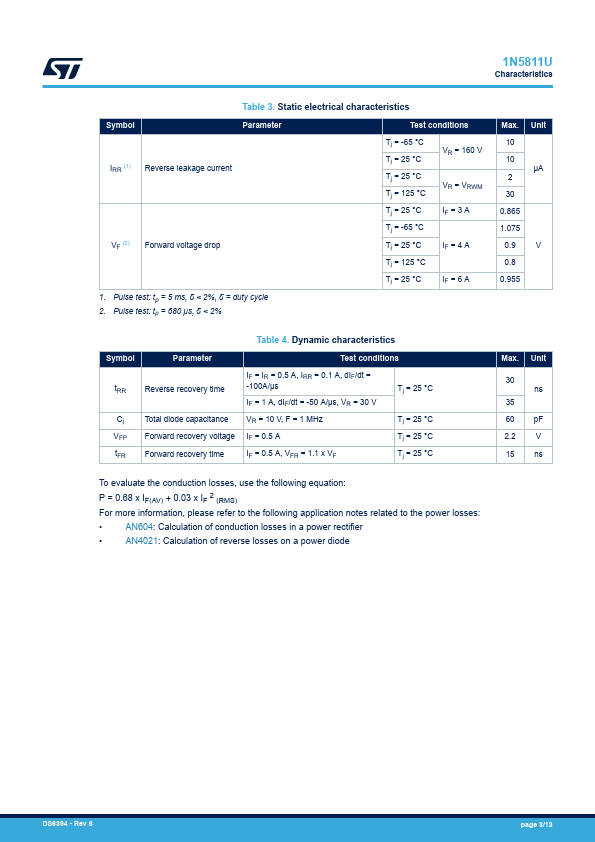

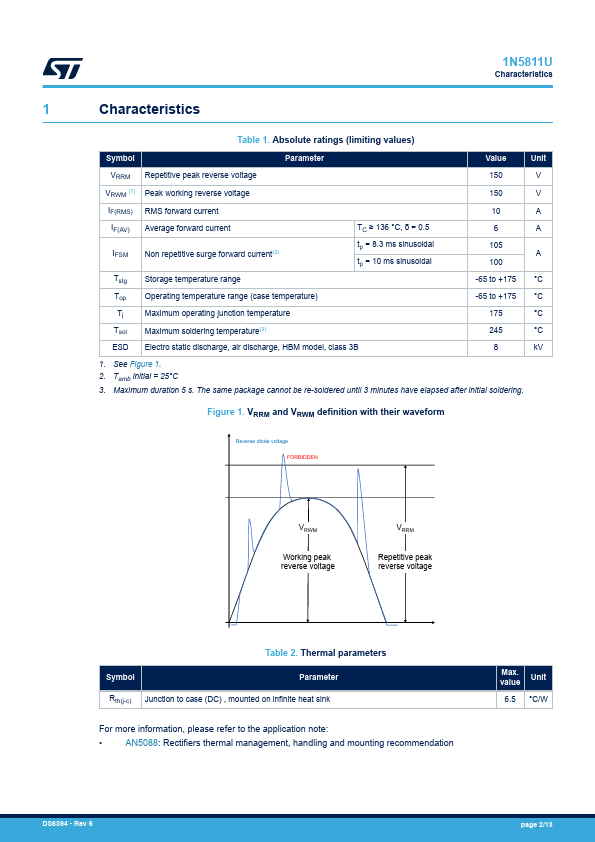

Key Features

  • Low forward voltage: VF = 0.95 V at 6 A and +125 °C.
  • Very small conduction losses.
  • Ultrafast switchings, trr = 35 ns at -50 A/µs and Tj = 25 °C.
  • High thermal conductivity materials.
  • Surface mount hermetic package.
  • Radiation performance.
  • 3 Mrad (Si) high dose rate.
  • ESCC qualified: detail specification 5101/013.
