Features
UL 1557 Certified.
Adopt the latest trench IGBT technology to get a good overall loss trade-off.
Open Emitter on N terminal for low cost current sensing.
Datasheet Details
Part number
ID30FFX60U3S_A
Manufacturer
STARPOWER
File Size
718.07 KB
Description
IPM
Datasheet
📁 Similar Datasheet
Part Number
Description
Manufacturer
ID300
SILICON CONTROLLED RECTIFIERS
Digitron Semiconductors
ID300
SCR
Microsemi
ID301
SILICON CONTROLLED RECTIFIERS
Digitron Semiconductors
ID301
SCR
Microsemi
Other Datasheets by STARPOWER
Full PDF Text Transcription (Reference)
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text
ID30FFX60U3S_A
IPM Module

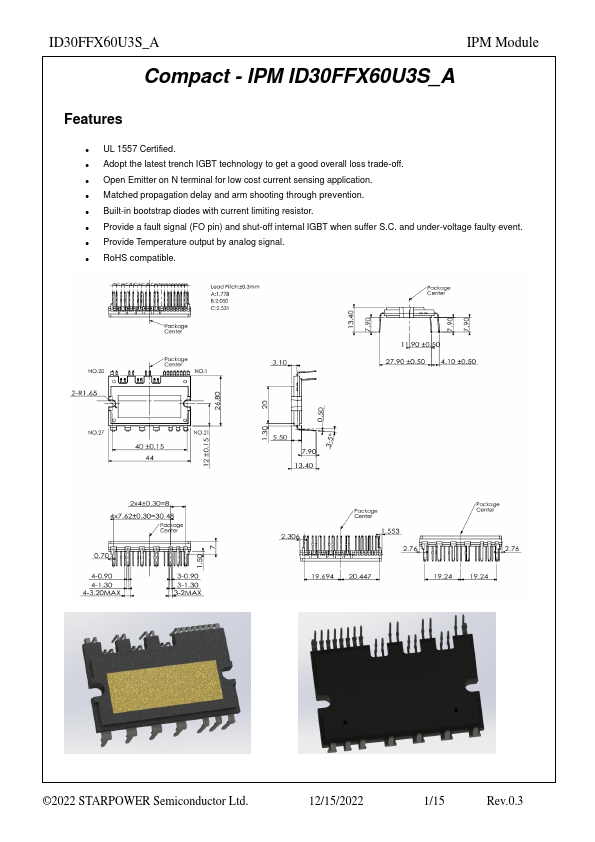

Compact - IPM ID30FFX60U3S_A
Features
⚫ UL 1557 Certified. ⚫ Adopt the latest trench IGBT technology to get a good overall loss trade-off. ⚫ Open Emitter on N terminal for low cost current sensing application. ⚫ Matched propagation delay and arm shooting through prevention. ⚫ Built-in bootstrap diodes with current limiting resistor. ⚫ Provide a fault signal (FO pin) and shut-off internal IGBT when suffer S.C. and under-voltage faulty event. ⚫ Provide Temperature output by analog signal. ⚫ RoHS compatible.
©2022 STARPOWER Semiconductor Ltd.
12/15/2022
www.powersemi.cc
www.powersemi.cc
1/15
Rev.0.3
ID30FFX60U3S_A
IPM Module

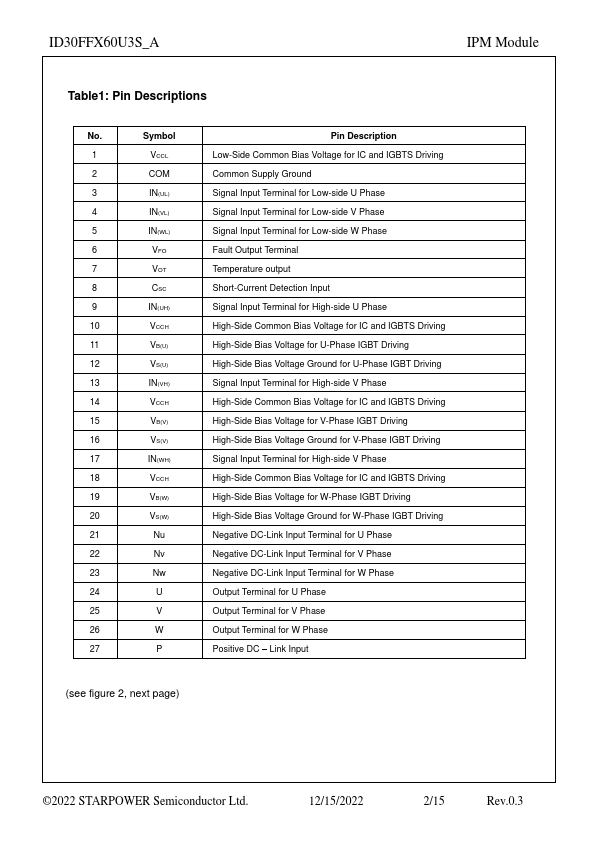

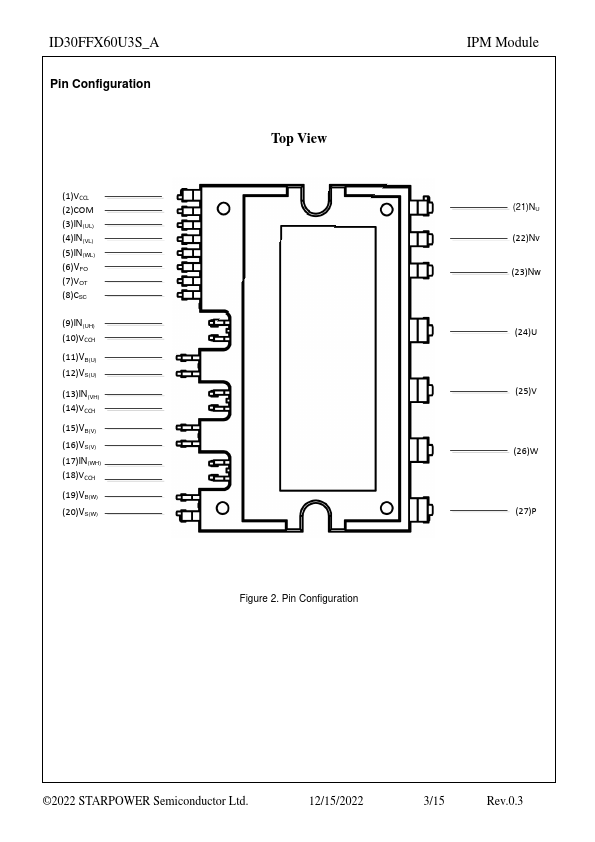

Table1: Pin Descriptions
