GD400HTX120P6H - IGBT

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as hybrid and electric vehicle.

Features

  • Low VCE(sat) Trench IGBT technology.
  • Low switching losses.
  • 6μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper pinfin baseplate using Si3N4AMB technology Typical.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GD4001B Quad 2-Input NOR Gate / Dual 4-Input NOR Gate Hynix Semiconductor
GD400SD SURFACE MOUNT SCHOTTKY BARRIER DIODE GTM
GD4011B Dual NAND Gate Hynix Semiconductor
GD4012B Dual NAND Gate Hynix Semiconductor
GD4013B Dual D Flip-Flop Hynix Semiconductor

Other Datasheets by

Part Number Description
GD400HTX75P7H IGBT
GD400HTA120P7H_T1 IGBT
GD400HTA120P7H_T2 IGBT
GD400HFQ120C2S IGBT
GD400HFQ120C2SD IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

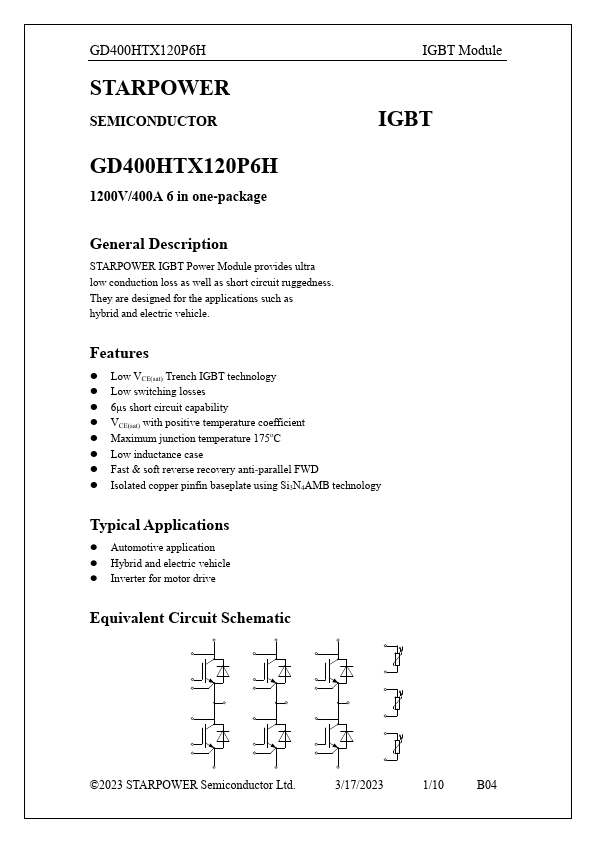

GD400HTX120P6H STARPOWER SEMICONDUCTOR GD400HTX120P6H 1200V/400A 6 in one-package IGBT Module IGBT General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as hybrid and electric vehicle. Features  Low VCE(sat) Trench IGBT technology  Low switching losses  6μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper pinfin baseplate using Si3N4AMB technology Typical Applications  Automotive application  Hybrid and electric vehicle  Inverter for motor drive Equivalent Circuit Schematic ©2023 STARPOWER Semiconductor Ltd.
