GD150FFY120C6S - IGBT

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as general inverters and UPS.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 10μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper baseplate using DBC technology Typical.

📥 Download Datasheet

Datasheet Details

Part number GD150FFY120C6S
Manufacturer STARPOWER
File Size 599.11 KB
Description IGBT
Datasheet download datasheet GD150FFY120C6S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GD150A Voltage Stabilizer Ericsson
GD150S Voltage Stabilizer Ericsson
GD15MPS17H Silicon Carbide Schottky Diode GeneSiC
GD103SD SWITCHING DIODE GTM
GD10HF60KD short-circuit rugged IGBT STMicroelectronics

Other Datasheets by STARPOWER

Part Number Description
GD150FFY120C6SF IGBT
GD150FFA120C6S IGBT
GD150FFT120C6S_T4 IGBT
GD150FFX120C6S IGBT
GD150FFX170C6S IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

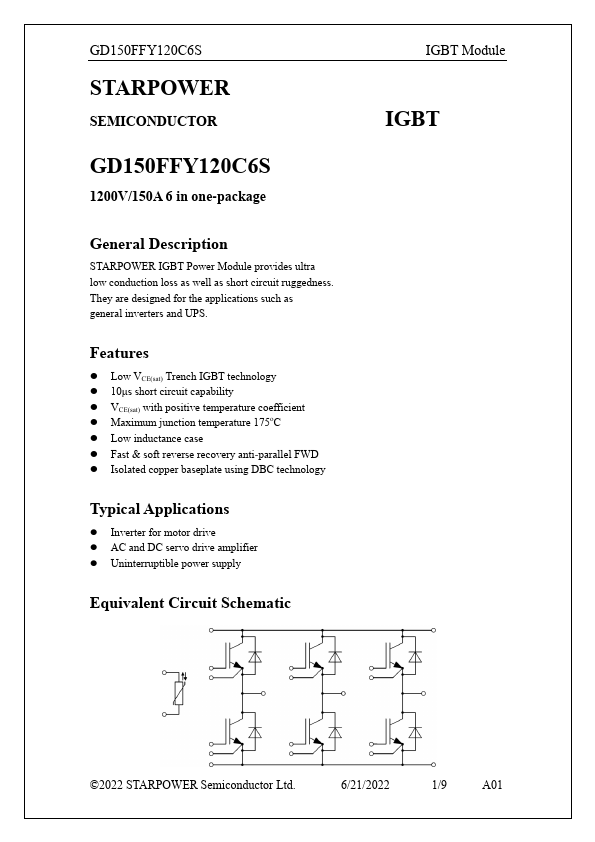

GD150FFY120C6S STARPOWER SEMICONDUCTOR GD150FFY120C6S 1200V/150A 6 in one-package General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS. Features  Low VCE(sat) Trench IGBT technology  10μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper baseplate using DBC technology Typical Applications  Inverter for motor drive  AC and DC servo drive amplifier  Uninterruptible power supply Equivalent Circuit Schematic IGBT Module IGBT ©2022 STARPOWER Semiconductor Ltd.
